2910504

Active

Phoenix Contact

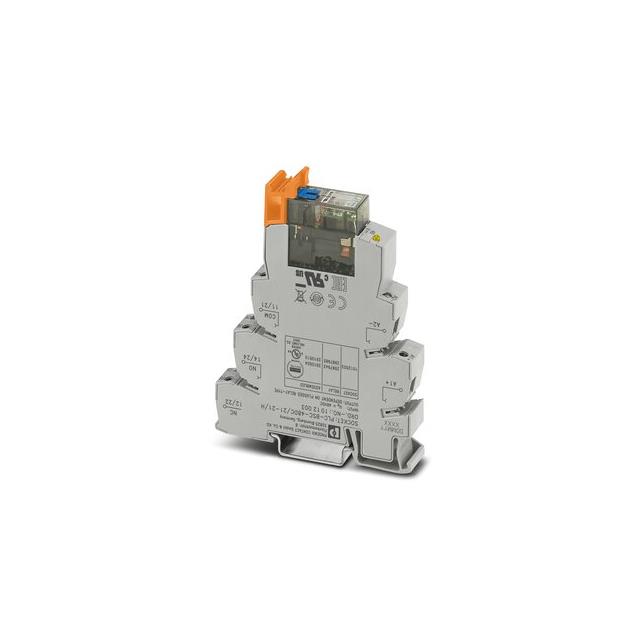

PLC-RSC- 48DC/21-21AU/MS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2910504

Active

Phoenix Contact

PLC-RSC- 48DC/21-21AU/MS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 37.66

Description

General part information

29105 Series

General Purpose Relay DPDT (2 Form C) 48VDC Coil DIN Rail

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2910504	29105 Series

Approval Agency	UKCA, CE	UKCA, CE, cULus, DNV, UL, EAC
Coil Current	19 mA	5 - 19 mA
Coil Resistance	2.526 kOhms	2.526 - 1333 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	48 VDC	24 - 230 VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C), SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	6 A	6 - 50 A
Features	Socket Included, Diode	Diode, Test Button, Lighted Indicator, Socket Included, Mechanical Indicator
Mounting Type	DIN Rail	DIN Rail
Must Operate Voltage	40.3 VDC	40.3 - 207 VAC
Operate Time	6 ms	6 - 15 ms
Operating Temperature [Max]	60 °C	50 - 60 °C
Operating Temperature [Min]	-20 C	-40 - -20 C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	8 - 15 ms
Switching Voltage	250 VAC, 250 VDC	30 - 250 VAC
Termination Style	Screw Terminal	Spring Terminal, Screw Terminal

29105 Series

RELAY MODULE, DPDT, 0.05A, 24V, DIN RAIL

Part	Release Time	Mounting Type	Termination Style	Features	Contact Form	Coil Voltage	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Relay Type	Contact Material	Coil Resistance	Approval Agency	Contact Rating (Current)	Coil Type	Coil Current	Must Operate Voltage
Phoenix Contact 2910524	10 ms	DIN Rail	Spring Terminal	Diode, Lighted Indicator, Mechanical Indicator, Socket Included, Test Button	DPDT (2 Form C)	24 VDC	10 ms	-20 C	60 °C	250 VAC, 250 VDC	General Purpose	Gold (Au), Silver Nickel (AgNi)	1333 Ohms	CE, UKCA	6 A	Non Latching	18 mA
Phoenix Contact 2910518	8 ms	DIN Rail	Screw Terminal	Diode, Lighted Indicator, Socket Included, Test Button	SPDT (1 Form C)	230 VAC	6 ms	-40 °C	50 °C	250 VAC, 250 VDC	General Purpose	Silver Nickel (AgNi)	46 kOhms	CE, UKCA	10 A	Non Latching	5 mA	207 VAC
Phoenix Contact 2910504	10 ms	DIN Rail	Screw Terminal	Diode, Socket Included	DPDT (2 Form C)	48 VDC	6 ms	-20 C	60 °C	250 VAC, 250 VDC	General Purpose	Silver Nickel (AgNi)	2.526 kOhms	CE, UKCA	6 A	Non Latching	19 mA	40.3 VDC
Phoenix Contact 2910517	8 ms	DIN Rail	Screw Terminal	Diode, Lighted Indicator, Socket Included, Test Button	SPDT (1 Form C)	120 VAC, 120 VDC	6 ms	-40 °C	55 °C	250 VAC, 250 VDC	General Purpose	Silver Nickel (AgNi)	24 kOhms	CE, UKCA	10 A	Non Latching	5 mA	96 VAC
Phoenix Contact 2910515	15 ms	DIN Rail	Screw Terminal	Lighted Indicator, Socket Included	SPDT (1 Form C)	24 VAC	15 ms	-40 °C	60 °C	250 VAC, 250 VDC	General Purpose	Silver Nickel (AgNi)	1333 Ohms	CE, UKCA	10 A	Non Latching	18 mA
Phoenix Contact 2910531	15 ms	DIN Rail	Spring Terminal	Diode, Lighted Indicator, Socket Included, Test Button	SPDT (1 Form C)	24 VAC	15 ms	-40 °C	60 °C	250 VAC, 250 VDC	General Purpose	Silver Nickel (AgNi)	1333 Ohms	CE, UKCA	10 A	Non Latching	18 mA
Phoenix Contact 2910526	15 ms	DIN Rail	Spring Terminal	Diode, Lighted Indicator, Mechanical Indicator, Socket Included, Test Button	DPDT (2 Form C)	24 VAC	15 ms	-20 C	60 °C	250 VAC, 250 VDC	General Purpose	Gold (Au), Silver Nickel (AgNi)	1333 Ohms	CE, UKCA	6 A	Non Latching	18 mA
Phoenix Contact 2910511	15 ms	DIN Rail	Screw Terminal	Lighted Indicator, Socket Included	DPDT (2 Form C)	120 VAC, 120 VDC	15 ms	-20 C	55 °C	30 VAC, 36 VDC	General Purpose	Gold (Au), Silver Nickel (AgNi)	24 kOhms	cULus, DNV, EAC, UL	50 mA	Non Latching	5 mA	96 VAC
Phoenix Contact 2910508	15 ms	DIN Rail	Screw Terminal	Lighted Indicator, Socket Included	DPDT (2 Form C)	24 VAC	15 ms	-20 C	60 °C	30 VAC, 36 VDC	General Purpose	Gold (Au), Silver Nickel (AgNi)	1333 Ohms	cULus, DNV, EAC, UL	50 mA	Non Latching	18 mA
Phoenix Contact 2910533	8 ms	DIN Rail	Spring Terminal	Diode, Lighted Indicator, Socket Included, Test Button	SPDT (1 Form C)	120 VAC, 120 VDC	6 ms	-40 °C	55 °C	250 VAC, 250 VDC	General Purpose	Silver Nickel (AgNi)	24 kOhms	CE, UKCA	10 A	Non Latching	5 mA	96 VAC
