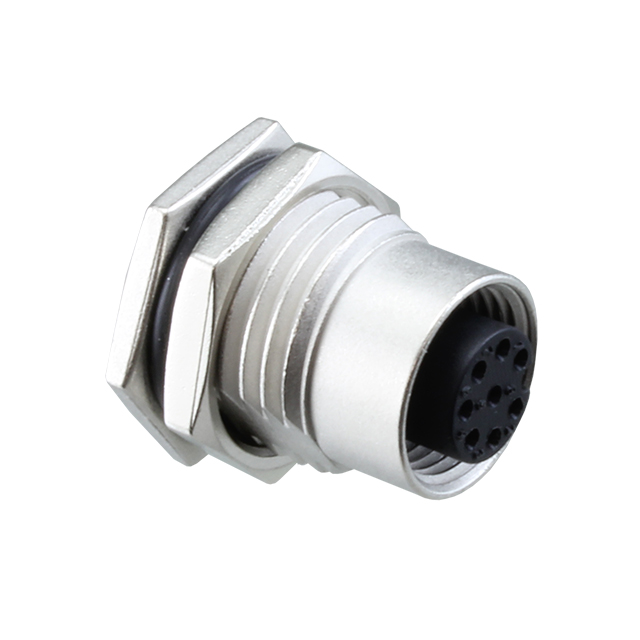

M12A-08PFFS-SF8002 - M12A-08PFFS-SF8002

M12A-08PFFS-SF8002

Active
Amphenol LTW

SENSOR CONNECTOR, M SERIES, M12, FEMALE, 8 POSITIONS, SOLDER SOCKET, STRAIGHT PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENEnhanced Product Overview EN+1
M12A-08PFFS-SF8002 - M12A-08PFFS-SF8002

M12A-08PFFS-SF8002

Active
Amphenol LTW

SENSOR CONNECTOR, M SERIES, M12, FEMALE, 8 POSITIONS, SOLDER SOCKET, STRAIGHT PANEL MOUNT

Deep-Dive with AI

DocumentsTechnical Data Sheet ENEnhanced Product Overview EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationM12A-08PFFS-SF8002
ColorSilver
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingGold
Contact MaterialCopper Alloy
Current Rating (Amps)2 A
Ingress ProtectionIP68, IP69K
Insert MaterialPolyamide (PA), Nylon, Glass Filled
Mounting FeatureBulkhead - Front Side Nut
Mounting TypeThrough Hole, Panel Mount
Number of Positions8
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
OrientationA
Primary MaterialMetal
Shell FinishNickel
Shell MaterialZinc Alloy
Shell Size - InsertM12-8
ShieldingShielded
Voltage Rating30 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 8.12
10$ 7.30
30$ 6.88
50$ 6.70
100$ 6.53
250$ 6.21
NewarkEach 1$ 7.68
5$ 7.21
10$ 6.74
25$ 6.48
50$ 6.21

Description

General part information

M12A-08PFFS Series

8 Position Circular Connector Receptacle, Female Sockets Solder Cup
