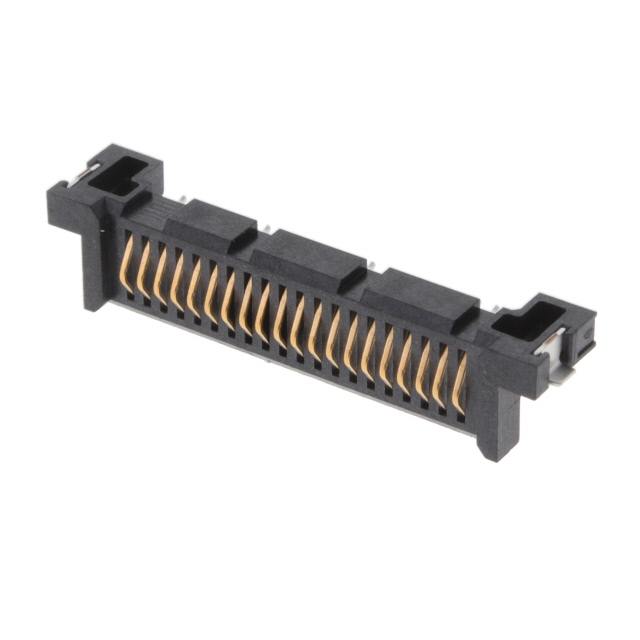

SAL1-120-01-S-S-A-TR
ActiveSamtec Inc.
MEZZANINE CONN, RCPT, 20POS, 1ROW
Deep-Dive with AI
Search across all available documentation for this part.
SAL1-120-01-S-S-A-TR
ActiveSamtec Inc.
MEZZANINE CONN, RCPT, 20POS, 1ROW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SAL1-120-01-S-S-A-TR |
|---|---|
| Card Thickness [Max] | 2.36 mm |
| Card Thickness [Max] | 0.093 in |
| Card Thickness [Min] | 1.6 mm |
| Card Thickness [Min] | 0.063 in |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Features | Solder Retention, Board Guide |
| Gender | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Read Out | Single |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SAL1-120 Series
20 Position Female Connector Gold 0.039" (1.00mm) Black
