R75UW382050H4J

Active

KEMET

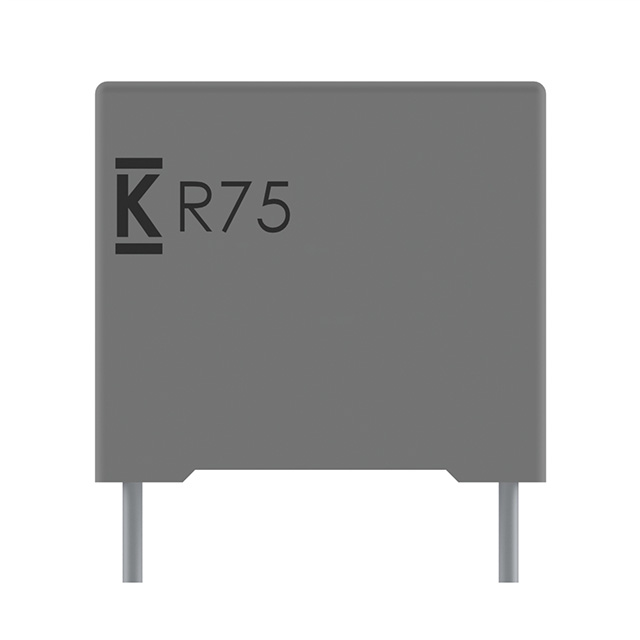

CAP, AEC-Q200, 0.82UF, 2KV, FILM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

CAP, AEC-Q200, 0.82UF, 2KV, FILM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	R75UW382050H4J

Applications	Automotive, High Frequency, Switching, High Pulse, DV/DT
Capacitance	0.82 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	3.9 mOhms
Height - Seated (Max) [Max] [z]	1.736 in
Height - Seated (Max) [Max] [z]	44.1 mm
Lead Spacing	37.5 mm
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	41.5 mm
Size / Dimension [x]	1.634 "
Size / Dimension [y]	24 mm
Size / Dimension [y]	0.945 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	700 V
Voltage Rating - DC	2 kV
Voltage Rating - DC	2 kVDC

Part	Tolerance	Termination	Package / Case	Mounting Type	Capacitance	Dielectric Material	ESR (Equivalent Series Resistance)	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Voltage Rating - DC	Voltage Rating - DC	Applications	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
KEMET R75UW356050H4J	5 %	PC Pins	Radial	Through Hole	0.56 µF	Metallized Polypropylene (PP)	5.7 mOhms	700 V	1.634 "	20 mm	41.5 mm	0.787 in	37.5 mm	1.476 in	-55 °C	125 °C	1.579 in	40.1 mm	2 kV	2 kVDC	Automotive High Frequency Switching High Pulse DV/DT	AEC-Q200
KEMET R75UW322050L3J	5 %	PC Pins	Radial	Through Hole	0.22 µF	Metallized Polypropylene (PP)	5.1 mOhm	700 V	1.634 "	24 mm	41.5 mm	0.945 in	37.5 mm	1.476 in	-55 °C	105 ░C		15.1 mm	2 kV	2 kVDC	DV/DT High Frequency High Pulse Switching		0.594 in
KEMET R75UW382050H4J	5 %	PC Pins	Radial	Through Hole	0.82 µF	Metallized Polypropylene (PP)	3.9 mOhms	700 V	1.634 "	24 mm	41.5 mm	0.945 in	37.5 mm	1.476 in	-55 °C	125 °C	1.736 in		2 kV	2 kVDC	Automotive High Frequency Switching High Pulse DV/DT	AEC-Q200		44.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.82 µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial
