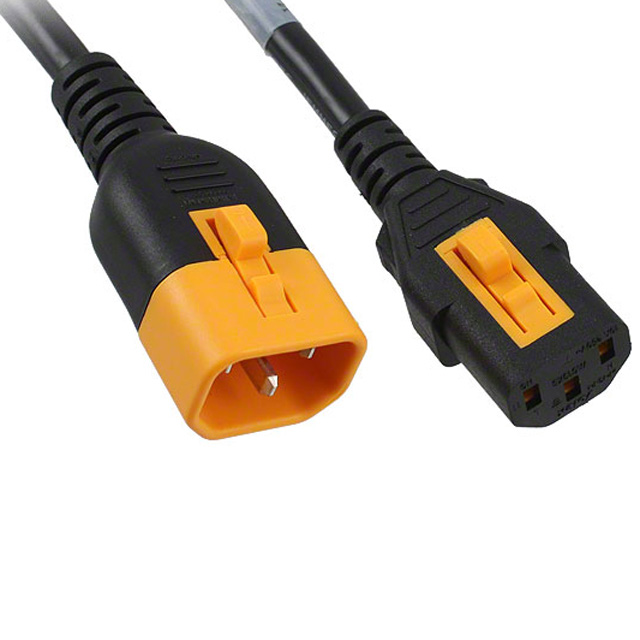

| 1st Connector | IEC 320-C14 | IEC 320-C14, GB2099, IEC 320-C13, NEMA 5-15P, CEE 7/7, NEMA 1-15P, CEI 23-50, CEE 7/16, IEC 320-C19, Right Angle, BS1363A, AS3112, JIS 8303, SANS 164-1, Right Angle, NBR 14136, NEMA 6-20P, IEC 884/EN50 075 |
| 2nd Connector | - | IEC 320-C19, IEC 320-C7, Cable, IEC 320-C17, IEC 320-C5 |
| Actuator Height off PCB, Vertical | - | 3.85 - 12.5 mm |
| Actuator Height off PCB, Vertical | - | 4.8 - 9.5 mm |
| Actuator Material | - | Polyphenylene Sulfide (PPS), Polycarbonate (PC) |
| Actuator Orientation | - | Top Actuated, Side Actuated |
| Actuator Type | - | Standard, Plunger for Cap |
| Approval Agency Marking | UL, CSA, CCC, VDE | UL, CSA, CCC, VDE, IMQ, KEMA, VDE, BSI, RCM, cUL, SEMKO, OVE, NEMKO, DEMKO, KEMA, PSE, ZA, FIMKO, ESTI, CEBEC, CSA, cUL, UL, SEV |
| Approved Countries | - | United States, Canada, United Kingdom, Denmark, Austria, Norway, Sweden, Netherlands, Italy, South Africa, Finland, Germany, Switzerland, Belgium, Europe |
| Approved Countries [custom] | Germany, Canada, China, United States | Germany, Canada, China, United States, Italy, Netherlands, Australia, Japan, Denmark, Norway, Austria, Finland, Sweden, Brazil |
| Cable Termination | - | Crimp |
| Cable Type | - | Round |
| Circuit | - | SPST-NO |
| Color | Black | Black, Silver, Multiple, Individual, White, Gray |
| Connector Type | - | Plug, Male Pins, Receptacle, Female Sockets, Socket to Cable |
| Connector Type | - | 2.1 - 6.5 mm |
| Contact Finish - Mating | - | Silver |
| Contact Rating @ Voltage | - | 0.05 - 48 VDC |
| Cord Type | H05VV-F3G1.0, SVT | H05VV-F3G1.0, SVT, H05VV-F, SJT, H05VV-F3G1.5, SPT-2, H05VV-F3G0.75, SJTW, VCTF, HVCTF3G0.75, H03VVH2-F2G0.75 |
| Current Rating (Amps) | 10 A | 0.5 - 16 A |
| Fastening Type | - | Push-Pull |
| Features | V-Lock | V-Lock, Strain Relief, Backshell, Tactile Feedback, Ground, Board Lock, Hospital Grade, Outdoor Use |
| Illumination | - | Non-Illuminated |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof, IP40 |
| Length | - | 0.755 - 19.69 ' |
| Length | - | 1.5 - 609.6 m |
| Length | - | 9.06 in |
| Length [x] | 2 m | 1.22 - 4 m |
| Length [x] | 6.56 ft | 2 - 13.12 ft |
| Material Flammability Rating | - | UL94 V-0 |
| Mechanical Life | - | 100000 - 1000000 Cycles |
| Mounting Feature | - | Bulkhead - Rear Side Nut |
| Mounting Type | - | Free Hanging (In-Line), Through Hole, Surface Mount, Through Hole, Right Angle, Requires Holder |
| Number of Conductors | 3 | 2 - 3 |
| Number of Positions | - | 4 - 8 |
| Number of Rows | - | 1 |
| Operating Force | - | 0.25 - 220 gf |
| Operating Temperature | - | 70 °C |
| Operating Temperature [Max] | 70 °C | 60 - 85 °C |
| Operating Temperature [Min] | -25 °C | -40 - -20 °C |
| Orientation | - | Keyed |
| Outline | - | 6 - 12.65 mm |
| Outline | - | 6 - 12.65 mm |
| Package / Case | - | 20 mm |
| Package / Case | - | 5 mm |
| Primary Material | - | Plastic |
| Response Time | - | Slow Blow |
| Shell Size - Insert | - | Mini DIN |
| Shielding | Unshielded | Unshielded, Shielded |
| Size / Dimension | - | 5 mm |
| Size / Dimension | - | 0.197 " |
| Size / Dimension | - | 20 mm |
| Size / Dimension | - | 0.787 in |
| Style | Male Pins, Female Sockets | Male Pins, Female Sockets, Plug, Right Angle to Wire Leads, Female Sockets (Slots) to Leads |
| Switch Function | - | Off-Mom |
| Switch Travel | - | 0.25 - 0.45 mm |
| Termination | - | Solder |
| Termination Style | - | PC Pin, Gull Wing |
| Voltage Rating | 250 VAC | 12 - 250 VAC |
| Wire Gauge | 18 AWG | 12 - 18 AWG |
