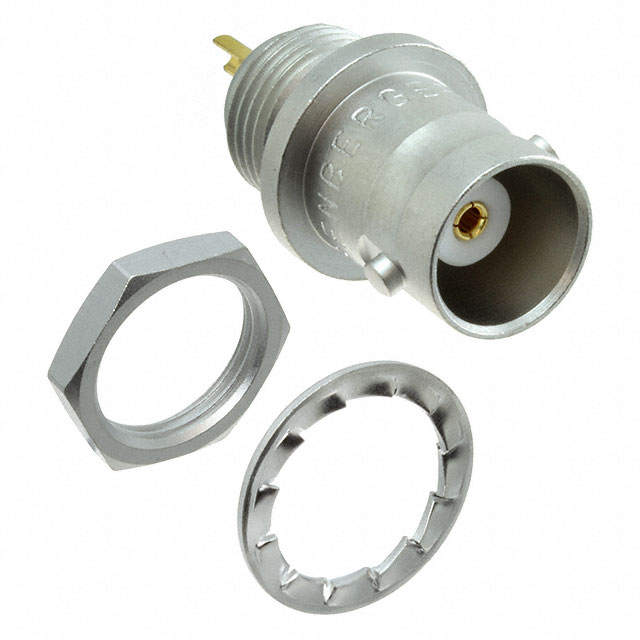

51K502-200N5

Active

Rosenberger

CONN BNC JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN BNC JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	51K502-200N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	10 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	400 V

Part	Center Contact Material	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Impedance	Center Contact Plating	Number of Ports	Dielectric Material	Connector Style	Contact Termination	Frequency - Max [Max]	Includes	Mounting Feature	Shield Termination	Voltage Rating	Fastening Type	Body Material	Mating Cycles	Connector Type
Rosenberger 51K502-200N5	Beryllium Copper	Silver	155 °C	-55 °C	White Bronze	50 Ohms	Gold	1	Polytetrafluoroethylene (PTFE)	BNC	Solder Cup	10 GHz	1 Connector 1 Lockwasher 1 Nut	Bulkhead - Rear Side Nut	Solder	400 V	Bayonet Lock	Brass	500	Female Socket Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 10.65

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
