DPA424SN-TL

Obsolete

Power Integrations

IC REG CONV POE TELECM 1OUT SPAK

Search across all available documentation for this part.

Obsolete

Power Integrations

IC REG CONV POE TELECM 1OUT SPAK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DPA424SN-TL	DPA424 Series

Applications	Converter, Power Over Ethernet and Telecom Applications	Converter, Power Over Ethernet and Telecom Applications
Mounting Type	Surface Mount	Surface Mount, Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C

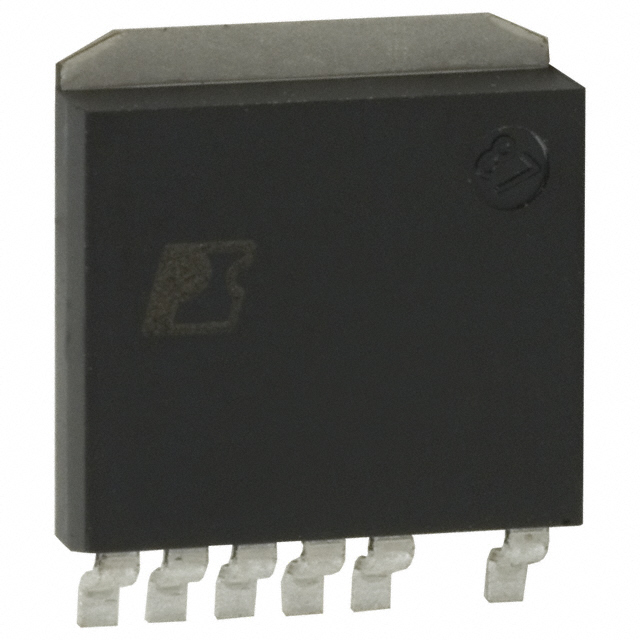

Package / Case	SPAK-6 (6 Leads + Tab)	SPAK-6 (6 Leads + Tab), TO-263CB, TO-263-7, D2PAK, 8-DIP
Package / Case	-	0.3 in
Package / Case	-	7.62 mm
Supplier Device Package	S-PAK	S-PAK, TO-263-7C, 8-PDIP
Voltage - Input [Max]	75 V	75 V
Voltage - Input [Min]	16 V	16 V
Voltage - Output	220 V	220 V

IC REG CONV POE TELECM 1OUT SPAK

Part	Number of Outputs	Applications	Package / Case	Mounting Type	Voltage - Output	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input [Max]	Voltage - Input [Min]	Package / Case	Package / Case
Power Integrations DPA424SN	1	Converter, Power Over Ethernet and Telecom Applications	SPAK-6 (6 Leads + Tab)	Surface Mount	220 V	S-PAK	125 °C	-40 °C	75 V	16 V
Power Integrations DPA424SN-TL	1	Converter, Power Over Ethernet and Telecom Applications	SPAK-6 (6 Leads + Tab)	Surface Mount	220 V	S-PAK	125 °C	-40 °C	75 V	16 V
Power Integrations DPA424R-TL	1	Converter, Power Over Ethernet and Telecom Applications	D2PAK, TO-263-7, TO-263CB	Surface Mount	220 V	TO-263-7C	125 °C	-40 °C	75 V	16 V
Power Integrations DPA424PN	1	Converter, Power Over Ethernet and Telecom Applications	8-DIP	Through Hole	220 V	8-PDIP	125 °C	-40 °C	75 V	16 V	0.3 in	7.62 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

DPA-Switch® Converter, Power Over Ethernet and Telecom Applications Voltage Regulator IC 1 Output S-PAK
