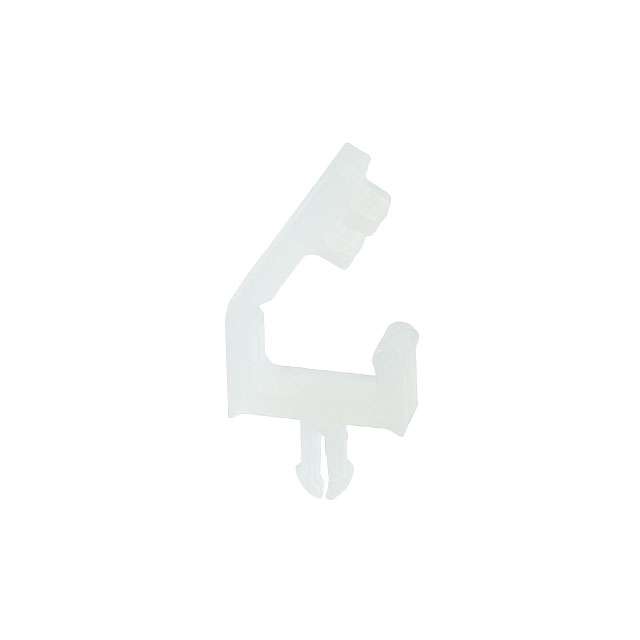

MWSLT1-1-01

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 8.7 MM, 2 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 8.7 MM, 2 MM

Technical Specifications

Parameters and characteristics for this part

Specification	MWSLT1-1-01

Color	Natural
Height	4.83 mm
Height [z]	0.19 "
Length	0.34 in
Length	8.64 mm
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Push In
Opening Size [x]	4.83 mm
Opening Size [x]	0.19 in
Opening Size [z]	0.1 in
Opening Size [z]	2.54 mm
Panel Hole Size	1.7 mm
Panel Hole Size [x]	0.067 in
Panel Thickness	2.36 mm
Panel Thickness	0.093 in
Type	Clip, Wire Saddle
Type Attributes	Hinged, Micro, Top Lock
Width [x]	2.03 mm
Width [x]	0.08 "

Part	Mounting Type	Type Attributes	Color	Material	Opening Size [x]	Opening Size [z]	Opening Size [x]	Opening Size [z]	Width [x]	Width [x]	Length	Length	Height	Height [z]	Panel Thickness	Panel Thickness	Type	Panel Hole Size [x]	Panel Hole Size	Material Flammability Rating
Essentra Access Solutions MWSLT1-1-01	Push In	Hinged Micro Top Lock	Natural	Polyamide (PA66) Nylon 6/6	4.83 mm	0.1 in	0.19 in	2.54 mm	2.03 mm	0.08 "	0.34 in	8.64 mm	4.83 mm	0.19 "	2.36 mm	0.093 in	Clip Wire Saddle	0.067 in	1.7 mm	UL94 V-2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Push In 0.190" L x 0.100" H (4.83mm x 2.54mm)
