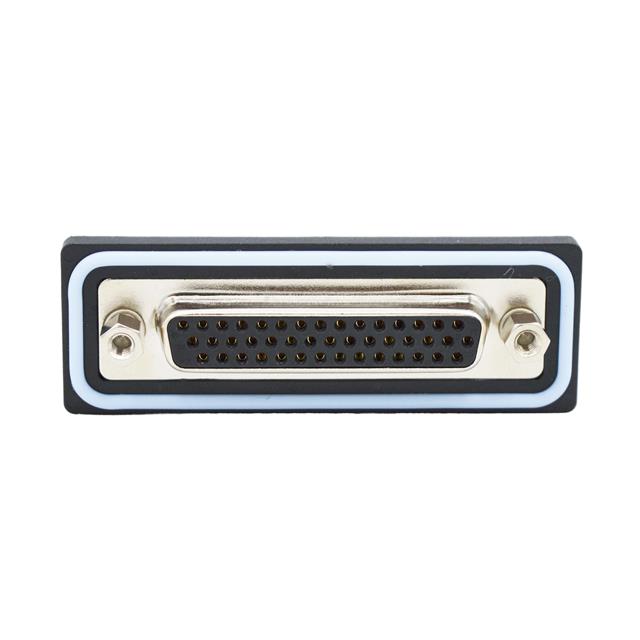

HDF-V44-213L011

Active

NorComp Inc.

CONN D-SUB HD RCPT 44POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HDF-V44-213L011

Active

NorComp Inc.

CONN D-SUB HD RCPT 44POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HDF-V44-213L011	HDF-V44 Series

Color	Black	Black
Connector Style	High Density, D-Sub	High Density, D-Sub
Connector Type	Receptacle, Female Sockets	Plug, Male Pins, Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Finish Thickness	-	0.76 Ám
Contact Finish Thickness	-	30 Áin
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Features	-	Grounding Indents, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	44	44
Number of Rows	3	3
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	B, DB	B, DB
Shell Size, Connector Layout [x]	3	3
Termination	Solder	Solder

HDF-V44 Series

D SUB CONNECTOR, IP67, HIGH DENSITY, PLUG, NANOOK SERIES, 44 CONTACTS, DB, SOLDER

Part	Contact Type	Material Flammability Rating	Number of Positions	Dielectric Material	Connector Style	Number of Rows	Termination	Contact Finish Thickness	Contact Finish Thickness	Color	Flange Feature	Contact Finish	Features	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Mounting Type	Shell Material, Finish	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Current Rating (Amps)	Connector Type	Contact Material	Contact Finish Thickness
NorComp Inc. HDF-V44-113L012	Signal	UL94 V-0	44	Polybutylene Terephthalate (PBT)	D-Sub, High Density	3	Solder	0.76 Ám	30 Áin	Black	Female Screwlock (4-40), Mating Side	Gold	Grounding Indents	-25 °C	85 °C	IP67 - Dust Tight, Waterproof	Panel Mount, Through Hole	Nickel Plated, Steel	3	B, DB	3 A	Male Pins, Plug	Brass
NorComp Inc. HDF-V44-213L012	Signal	UL94 V-0	44	Polybutylene Terephthalate (PBT)	D-Sub, High Density	3	Solder	0.76 Ám	30 Áin	Black	Female Screwlock (4-40), Mating Side	Gold		-25 °C	85 °C	IP67 - Dust Tight, Waterproof	Panel Mount, Through Hole	Nickel Plated, Steel	3	B, DB	3 A	Receptacle, Female Sockets	Brass
NorComp Inc. HDF-V44-113L052	Signal	UL94 V-0	44	Polybutylene Terephthalate (PBT)	D-Sub, High Density	3	Solder	0.76 Ám	30 Áin	Black	Female Screwlock (4-40), Mating Side	Gold	Board Lock, Grounding Indents	-25 °C	85 °C	IP67 - Dust Tight, Waterproof	Panel Mount, Through Hole	Nickel Plated, Steel	3	B, DB	3 A	Male Pins, Plug	Brass
NorComp Inc. HDF-V44-213L051	Signal	UL94 V-0	44	Polybutylene Terephthalate (PBT)	D-Sub, High Density	3	Solder			Black	Female Screwlock (4-40), Mating Side	Gold		-25 °C	85 °C	IP67 - Dust Tight, Waterproof	Panel Mount, Through Hole	Nickel Plated, Steel	3	B, DB	3 A	Receptacle, Female Sockets	Brass	Flash
NorComp Inc. HDF-V44-213L052	Signal	UL94 V-0	44	Polybutylene Terephthalate (PBT)	D-Sub, High Density	3	Solder	0.76 Ám	30 Áin	Black	Female Screwlock (4-40), Mating Side	Gold		-25 °C	85 °C	IP67 - Dust Tight, Waterproof	Panel Mount, Through Hole	Nickel Plated, Steel	3	B, DB	3 A	Receptacle, Female Sockets	Brass
NorComp Inc. HDF-V44-113L051	Signal	UL94 V-0	44	Polybutylene Terephthalate (PBT)	D-Sub, High Density	3	Solder			Black	Female Screwlock (4-40), Mating Side	Gold	Board Lock, Grounding Indents	-25 °C	85 °C	IP67 - Dust Tight, Waterproof	Panel Mount, Through Hole	Nickel Plated, Steel	3	B, DB	3 A	Male Pins, Plug	Brass	Flash
NorComp Inc. HDF-V44-113L011	Signal	UL94 V-0	44	Polybutylene Terephthalate (PBT)	D-Sub, High Density	3	Solder			Black	Female Screwlock (4-40), Mating Side	Gold	Grounding Indents	-25 °C	85 °C	IP67 - Dust Tight, Waterproof	Panel Mount, Through Hole	Nickel Plated, Steel	3	B, DB	3 A	Male Pins, Plug	Brass	Flash
NorComp Inc. HDF-V44-213L011	Signal	UL94 V-0	44	Polybutylene Terephthalate (PBT)	D-Sub, High Density	3	Solder			Black	Female Screwlock (4-40), Mating Side	Gold		-25 °C	85 °C	IP67 - Dust Tight, Waterproof	Panel Mount, Through Hole	Nickel Plated, Steel	3	B, DB	3 A	Receptacle, Female Sockets	Brass	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 20.47
		10	$ 15.76
		25	$ 14.27
		40	$ 13.57
		80	$ 12.62
		230	$ 11.35
		440	$ 10.65
		945	$ 9.95

Description

General part information

HDF-V44 Series

44 Position D-Sub, High Density Receptacle, Female Sockets Connector
