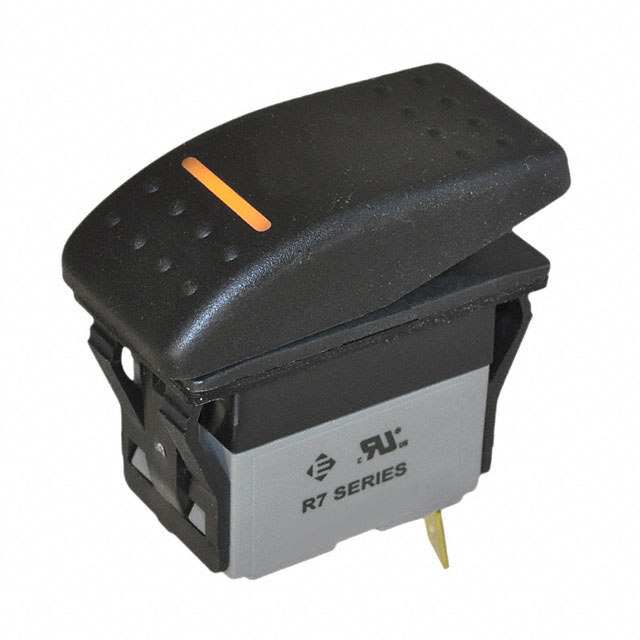

R711FB2-SXXX2BDANW
ActiveE-Switch
SWITCH ROCKER SPST 16A 30V
Deep-Dive with AI
Search across all available documentation for this part.
R711FB2-SXXX2BDANW
ActiveE-Switch
SWITCH ROCKER SPST 16A 30V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R711FB2-SXXX2BDANW |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Convex (Reverse V) - Illuminated |
| Approval Agency | cULus |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 16 A |
| Electrical Life | 10000 Cycles |
| Illumination Type, Color | Amber, LED |
| Illumination Voltage (Nominal) | 12 VDC |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 37 mm |
| Panel Cutout Dimensions [y] | 21.1 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 8.56 | |
Description
General part information
R711FB2 Series
Rocker Switch SPST 16A (DC) Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
