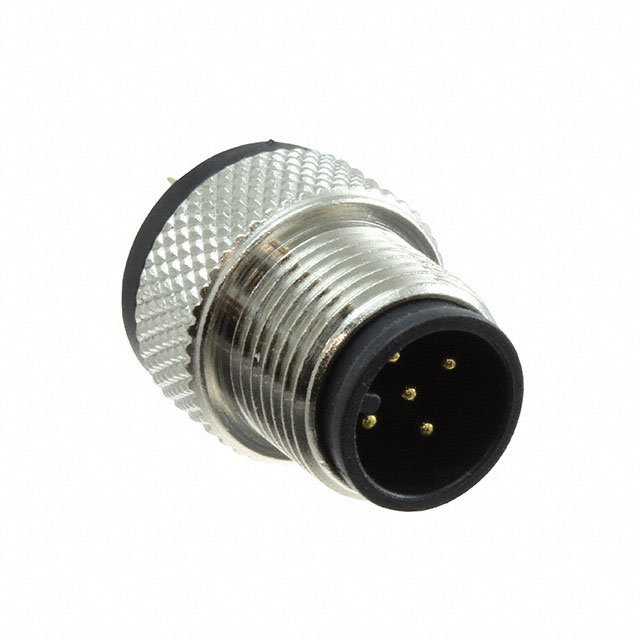

858VA05-103RLU4

Active

MH Connectors

CONN RCPT MALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

MH Connectors

CONN RCPT MALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	858VA05-103RLU4

Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Brass
Current Rating (Amps)	4 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-5
Shielding	Unshielded
Voltage Rating	60 VDC

Part	Contact Finish - Mating	Orientation	Shell Material	Contact Material	Ingress Protection	Shielding	Shell Finish	Primary Material	Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Current Rating (Amps)	Voltage Rating	Connector Type	Material Flammability Rating	Features	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
MH Connectors 858VA05-203RLU4	Gold	A	Brass	Brass	IP67 - Dust Tight Waterproof	Unshielded	Nickel	Metal	Black Silver	Free Hanging (In-Line)	-40 °C	105 ░C	M12-5	4 A	60 VDC	Female Sockets Plug	UL94 V-0	Coupling Nut	Polyamide (PA66) Nylon 6/6	10 çin	0.25 çm
MH Connectors 858VA05-103RLU4	Gold	A	Brass	Brass	IP67 - Dust Tight Waterproof	Unshielded	Nickel	Metal	Black Silver	Free Hanging (In-Line)	-40 °C	105 ░C	M12-5	4 A	60 VDC	Male Pins Receptacle	UL94 V-0		Polyamide (PA66) Nylon 6/6	10 çin	0.25 çm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 10.73

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
