FMTP-25-T-03.85-01-N
ActiveSamtec Inc.
.050" TIGER EYE IDC TWISTED PAI
Deep-Dive with AI
Search across all available documentation for this part.
FMTP-25-T-03.85-01-N
ActiveSamtec Inc.
.050" TIGER EYE IDC TWISTED PAI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FMTP-25-T-03.85-01-N |
|---|---|
| Cable Termination | IDC |
| Color | Multiple, Twisted Pair (Round) |
| Connector Type | Socket to Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Polarizing Key |
| Length | 3.85 " |
| Length | 0.321 ' |
| Length | 97.79 mm |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch - Cable | 0.64 mm |
| Pitch - Cable [x] | 0.025 in |
| Pitch - Connector | 0.05 in |
| Pitch - Connector | 1.27 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.83 | |
| 10 | $ 29.31 | |||
| 25 | $ 29.25 | |||
Description
General part information
FMTP-25 Series

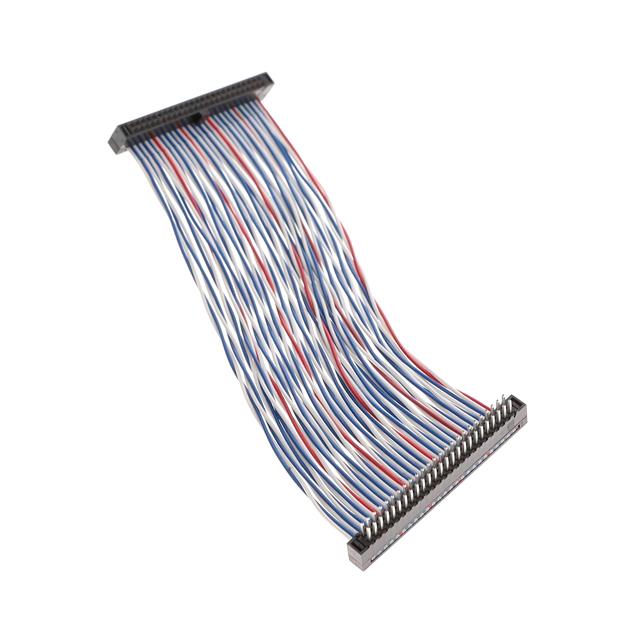

50 Position Cable Assembly Rectangular Socket to Plug 0.321' (97.79mm, 3.85")
Documents
Technical documentation and resources
