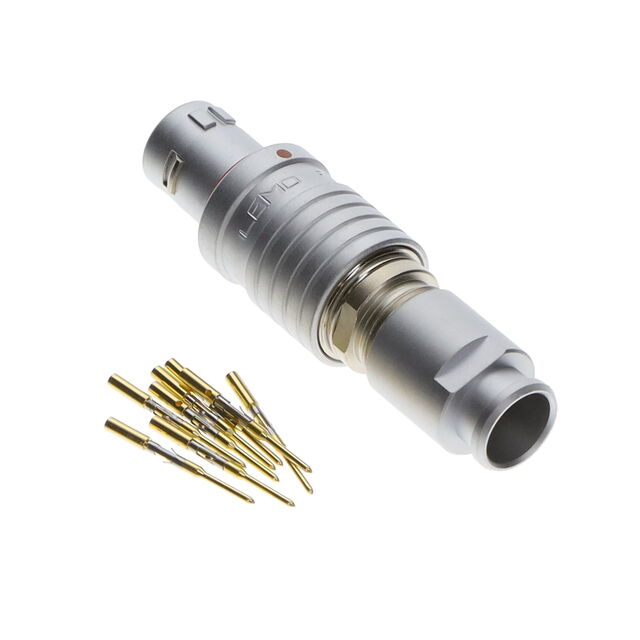

FEA.1B.308.CYCD72Z

Active

LEMO

CONN PLUG MALE 8POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 8POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	FEA.1B.308.CYCD72Z

Backshell Material, Plating	Brass, Chrome
Cable Opening [custom]	0.283 in, 0.244 in
Cable Opening [custom]	7.2 mm, 6.2 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	5 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP54 - Dust Protected, Water Resistant
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	A
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	308
Shielding	Shielded
Termination	Crimp

CONN PLUG MALE 8POS GOLD CRIMP

Part	Contact Finish - Mating	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [custom]	Cable Opening [custom]	Material Flammability Rating	Number of Positions	Current Rating (Amps)	Primary Material	Shell Material	Color	Contact Material	Backshell Material, Plating	Shell Finish	Mounting Type	Connector Type	Shell Size - Insert	Insert Material	Ingress Protection	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Fastening Type	Orientation
LEMO FEA.1B.308.CYCD72Z	Gold	Shielded	-55 °C	250 °C	0.244 in, 0.283 in	6.2 mm, 7.2 mm	UL94 V-0	8	5 A	Metal	Brass	Silver	Brass	Brass, Chrome	Chrome	Free Hanging (In-Line)	Male Pins, Plug	308	Polyetheretherketone (PEEK)	IP54 - Dust Protected, Water Resistant	Crimp	1 µm	39.4 µin	Backshell	Push-Pull	A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Male Pins Crimp

Technical documentation and resources

No documents available
