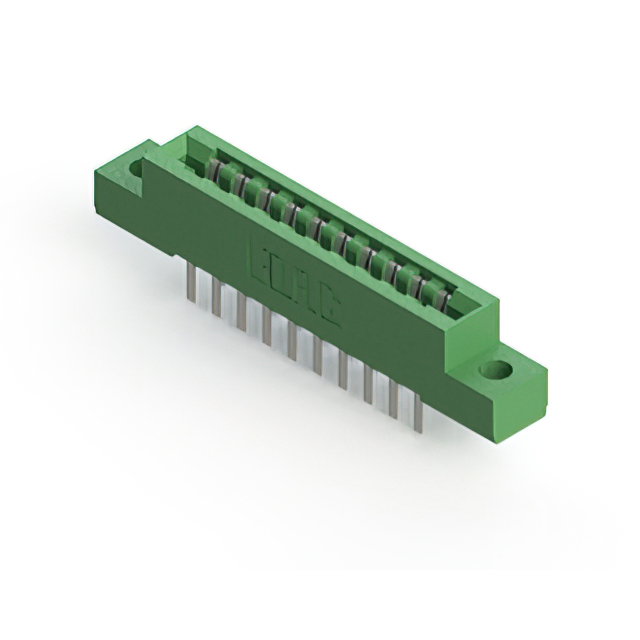

Connectors, Interconnects

807-020-442-202

Active

EDAC Inc.

CONN EDGE DUAL FMALE 20POS 0.156

Connectors, Interconnects

807-020-442-202

Active

EDAC Inc.

CONN EDGE DUAL FMALE 20POS 0.156

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-020-442-202

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Unthreaded, Top Opening
Flange Feature Diameter	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate, DAP
Mounting Type	Through Hole
Number of Positions	20, 10
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2 rows

807-020 Series

...

Part	Card Type	Color	Features	Number of Positions	Pitch	Card Thickness (Min)	Card Thickness (Max)	Read Out	Contact Type	Gender	Mounting Type	Flange Feature Diameter	Flange Feature	Contact Finish Thickness	Termination	Number of Rows	Contact Material	Contact Finish	Operating Temperature (Max)	Operating Temperature (Min)	Material - Insulation	Termination Rows
EDAC Inc. 807-020-556-204	Dual Edge Non Specified	Green	Card Extender	10 20	0.156 in	0.054 in	0.07 in	Dual	Semi Bellows	Female	Board Edge Straddle Mount	0.156 in	Flush Mount Top Opening Unthreaded	10 Ąin	Solder	2	Copper Alloy	Gold	125 °C	-40 °C	DAP Diallyl Phthalate	2 rows
EDAC Inc. 807-020-553-103	Dual Edge Non Specified	Green		20 40	0.156 in	0.054 in	0.07 in	Dual	Semi Bellows	Female	Right Angle Through Hole	0.116 in	Floating Bobbin Flush Mount	10 Ąin	Solder	2	Copper Alloy	Gold	125 °C	-40 °C	DAP Diallyl Phthalate	1 rows
EDAC Inc. 807-020-521-108	Dual Edge Non Specified	Green		20 40	0.156 in	0.054 in	0.07 in	Dual	Semi Bellows	Female	Through Hole		4-40 Flush Mount Threaded Insert Top Opening	10 Ąin	Solder	2	Copper Alloy	Gold	125 °C	-40 °C	DAP Diallyl Phthalate	1 rows
EDAC Inc. 807-020-442-202	Dual Edge Non Specified	Green		10 20	0.156 in	0.054 in	0.07 in	Dual	Semi Bellows	Female	Through Hole	0.128 in	Flush Mount Top Opening Unthreaded		Wire Wrap	2	Copper Alloy	Tin	125 °C	-40 °C	DAP Diallyl Phthalate	2 rows
EDAC Inc. 807-020-558-201	Dual Edge Non Specified	Green		10 20	0.156 in	0.054 in	0.07 in	Single	Semi Bellows	Female	Right Angle Through Hole			10 Ąin	Solder	2	Copper Alloy	Gold	125 °C	-40 °C	DAP Diallyl Phthalate	2 rows
EDAC Inc. 807-020-500-204	Dual Edge Non Specified	Green		10 20	0.156 in	0.054 in	0.07 in	Dual	Semi Bellows	Female	Through Hole	0.156 in	Flush Mount Top Opening Unthreaded	10 Ąin	Solder Eyelet(s)	2	Copper Alloy	Gold	125 °C	-40 °C	DAP Diallyl Phthalate	2 rows
EDAC Inc. 807-020-553-101	Dual Edge Non Specified	Green		20 40	0.156 in	0.054 in	0.07 in	Dual	Semi Bellows	Female	Right Angle Through Hole			10 Ąin	Solder	2	Copper Alloy	Gold	125 °C	-40 °C	DAP Diallyl Phthalate	1 rows
EDAC Inc. 807-020-427-108	Non Specified Single Edge	Green		20	0.156 in	0.054 in	0.07 in	Single	Semi Bellows	Female	Through Hole		4-40 Flush Mount Threaded Insert Top Opening		Solder	1	Copper Alloy	Tin	125 °C	-40 °C	DAP Diallyl Phthalate	1 rows
EDAC Inc. 807-020-425-108	Non Specified Single Edge	Green		20	0.156 in	0.054 in	0.07 in	Single	Semi Bellows	Female	Through Hole		4-40 Flush Mount Threaded Insert Top Opening		Solder	1	Copper Alloy	Tin	125 °C	-40 °C	DAP Diallyl Phthalate	1 rows
EDAC Inc. 807-020-441-108	Dual Edge Non Specified	Green		20 40	0.156 in	0.054 in	0.07 in	Dual	Semi Bellows	Female	Through Hole		4-40 Flush Mount Threaded Insert Top Opening		Wire Wrap	2	Copper Alloy	Tin	125 °C	-40 °C	DAP Diallyl Phthalate	1 rows
