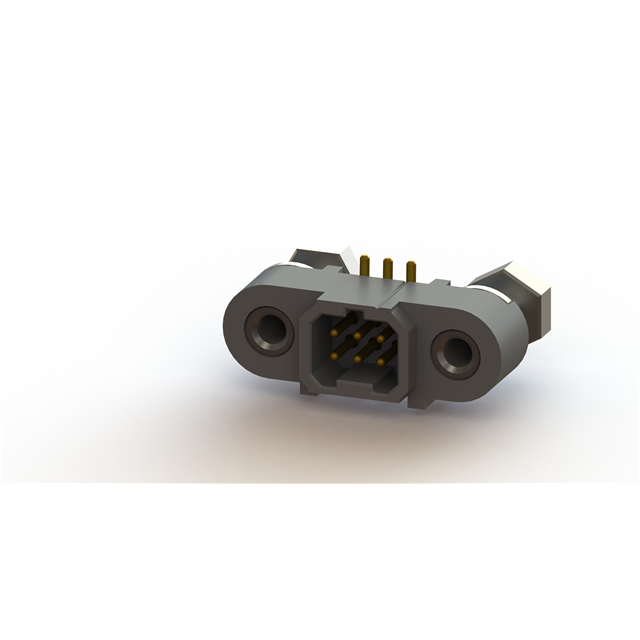

A221T06V22

Active

Nicomatic

MALE 6POS STRAIGHT SMT 1MM

Search across all available documentation for this part.

Active

Nicomatic

MALE 6POS STRAIGHT SMT 1MM

Technical Specifications

Parameters and characteristics for this part

Specification	A221T06V22

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Finish Thickness - Post	0.15 µm
Contact Finish Thickness - Post	5.9 µin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.5 A
Features	Mounting Flange, Mating Flange, Mounting Hardware
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	600 VAC

MALE 6POS STRAIGHT SMT 1MM

Part	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Connector Type	Contact Finish - Mating	Features	Style	Shrouding	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Insulation Height [custom]	Insulation Height [custom]	Contact Material	Voltage Rating	Termination	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Positions Loaded	Current Rating (Amps)	Insulation Color	Contact Type	Number of Rows
Nicomatic A221T06V22	Surface Mount	0.15 µm	5.9 µin	0.15 µm	5.9 µin	0.039 in	1 mm	Gold	Header	Gold	Mating Flange, Mounting Flange, Mounting Hardware	Board to Board, Cable	Shrouded - 4 Wall	6	0.039 "	1 mm	UL94 V-0	0.157 in	4 mm	Copper Alloy	600 VAC	Solder	Liquid Crystal Polymer (LCP)	-65 ░C	200 °C	Circular	All	2.5 A	Black	Male Pin	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 6 position 0.039" (1.00mm)
