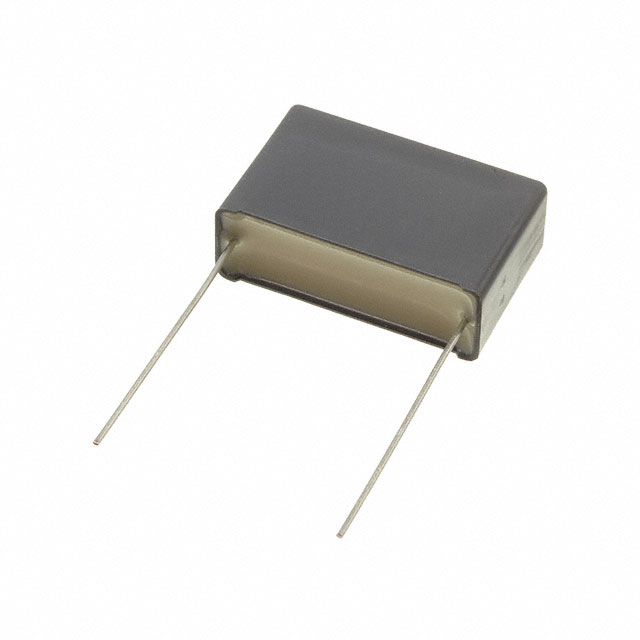

R75UR31004030J

Active

KEMET

FILM CAPACITOR, R75 SERIES, 0.1 F, 5%, PP (POLYPROPYLENE), 2 KV ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

FILM CAPACITOR, R75 SERIES, 0.1 F, 5%, PP (POLYPROPYLENE), 2 KV ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	R75UR31004030J

Applications	Switching, DV/DT, High Frequency, High Pulse
Capacitance	100000 pF
Dielectric Material	Metallized, Polypropylene (PP)
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	32 mm
Size / Dimension [x]	1.26 in
Size / Dimension [y]	11 mm
Size / Dimension [y]	0.433 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	700 V
Voltage Rating - DC	2 kV
Voltage Rating - DC	2 kVDC

Part	Capacitance	Voltage Rating - AC	Lead Spacing	Lead Spacing	Voltage Rating - DC	Voltage Rating - DC	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Dielectric Material	Mounting Type	ESR (Equivalent Series Resistance)	Applications	Termination
KEMET R75UR315050L4J	0.15 ÁF	700 V	27.5 mm	1.083 in	2 kV	2 kVDC	5 %	105 ░C	-55 °C	0.594 in	15.1 mm	24 mm	32 mm	1.26 in	0.945 in	Radial	Metallized Polypropylene (PP)	Through Hole	7.4 mOhms	DV/DT High Frequency High Pulse Switching	PC Pins
KEMET R75UR31004030J	100000 pF	700 V	27.5 mm	1.083 in	2 kV	2 kVDC	5 %	105 ░C	-55 °C			11 mm	32 mm	1.26 in	0.433 in	Radial	Metallized Polypropylene (PP)	Through Hole		DV/DT High Frequency High Pulse Switching	PC Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.1 µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial
