Technical Specifications
Parameters and characteristics for this part
| Specification | PM8803TR |
|---|---|
| Auxiliary Sense | False |
| Internal Switch(s) | Both |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case [custom] | 4.4 mm, 0.173 in |
| Package / Case [custom] | Exposed Pad |

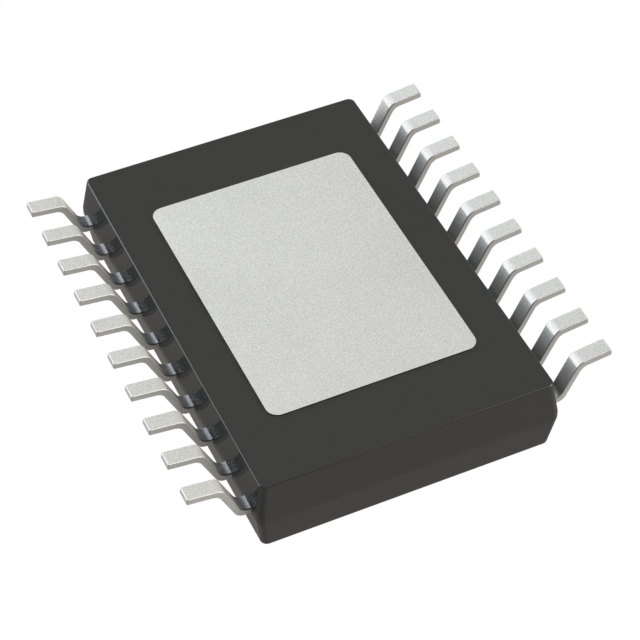

| Package / Case [custom] | 20-TSSOP |
| Power - Max [Max] | 25.5 W |
| Standards | 802.3at (PoE+), 802.3af (PoE) |
| Supplier Device Package | 20-HTSSOP |
| Type | Controller (PD), DC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.86 | |
| 10 | $ 2.57 | |||
| 25 | $ 2.43 | |||
| 100 | $ 2.10 | |||
| 250 | $ 2.00 | |||
| 500 | $ 1.79 | |||
| 1000 | $ 1.51 | |||
| Digi-Reel® | 1 | $ 2.86 | ||
| 10 | $ 2.57 | |||
| 25 | $ 2.43 | |||
| 100 | $ 2.10 | |||
| 250 | $ 2.00 | |||
| 500 | $ 1.79 | |||
| 1000 | $ 1.51 | |||
| Tape & Reel (TR) | 2500 | $ 1.42 | ||
| 5000 | $ 1.35 | |||
Description
General part information
PM8803 Series
The PM8803 integrates a Power over Ethernet (PoE) interface and a current mode PWM controller to simplify the design of the power supply sections of all powered devices. The PoE/PoE+ interface includes all functions required by the IEEE 802.3at as well as detection, classification, undervoltage lockout (UVLO) and inrush current limitation.
The PM8803 specifically performs IEEE802.3at Layer 1 hardware classification, providing the system with an indication of Type 2 PSE successful detection.
The PM8803 has been designed to work with power either from the Ethernet cable or from an external power source such as a wall adapter, ensuring the priority of the auxiliary source over the PoE. The DC-DC section of the PM8803 features a programmable oscillator frequency, an adjustable slope compensation, dual complementary low-side drivers, programmable dead time and an internal temperature sensor.
