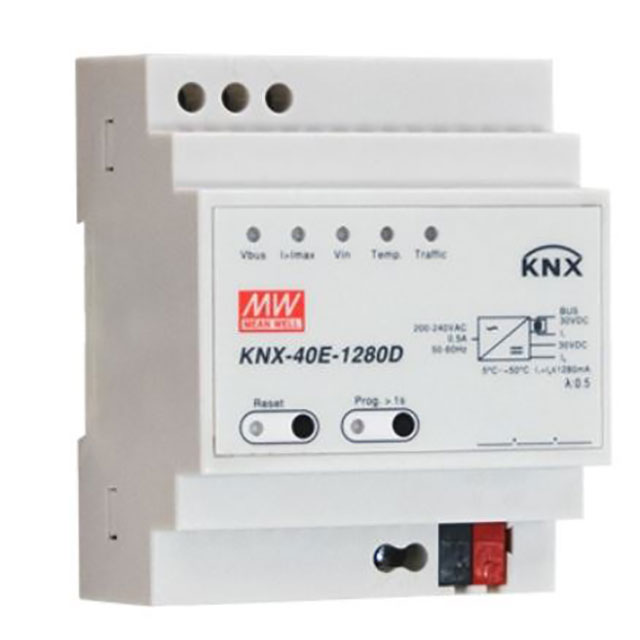

KNX-40E-1280D
ActiveMEAN WELL USA Inc.
AC/DC DIN RAIL SUPPLY 30V 38W
Deep-Dive with AI
Search across all available documentation for this part.
KNX-40E-1280D
ActiveMEAN WELL USA Inc.
AC/DC DIN RAIL SUPPLY 30V 38W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KNX-40E-1280D |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 180 VAC |
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 1.28 A |
| DC Voltage - Input (Max) [Max] | 280 V |
| DC Voltage - Input (Min) [Min] | 176 V |
| Efficiency | 86 % |
| Features | IP20 |
| Input Type | AC or DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 38 W |
| Size / Dimension [x] | 72 mm |
| Size / Dimension [x] | 2.83 " |
| Size / Dimension [y] | 2.3 " |
| Size / Dimension [y] | 58.5 mm |
| Size / Dimension [z] | 3.54 " |
| Size / Dimension [z] | 90 mm |
| Voltage - Isolation | 4.2 kV |
| Voltage - Output 1 | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 48 | $ 142.80 | |
Description
General part information
KNX-40E Series
AC/DC DIN RAIL SUPPLY 30V 38W
