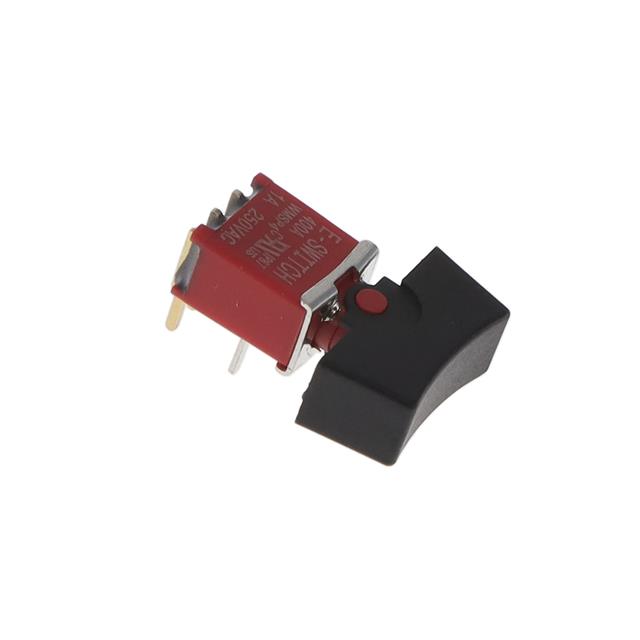

400AWMSP4R2BLKM6QE
ActiveE-Switch
SWITCH ROCKER SPDT 3A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
400AWMSP4R2BLKM6QE
ActiveE-Switch
SWITCH ROCKER SPDT 3A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 400AWMSP4R2BLKM6QE |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 3 A |
| Electrical Life | 30000 Cycles |
| Features | Epoxy Sealed Terminals |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 30000 Steps |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | Mom-Off-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.80 | |
| 10 | $ 2.50 | |||
| 25 | $ 2.37 | |||
| 40 | $ 2.29 | |||
| 80 | $ 2.17 | |||
| 270 | $ 2.11 | |||
Description
General part information
400AWMSP4 Series
Rocker Switch SPDT 3A (AC/DC) 120 V Through Hole, Right Angle
