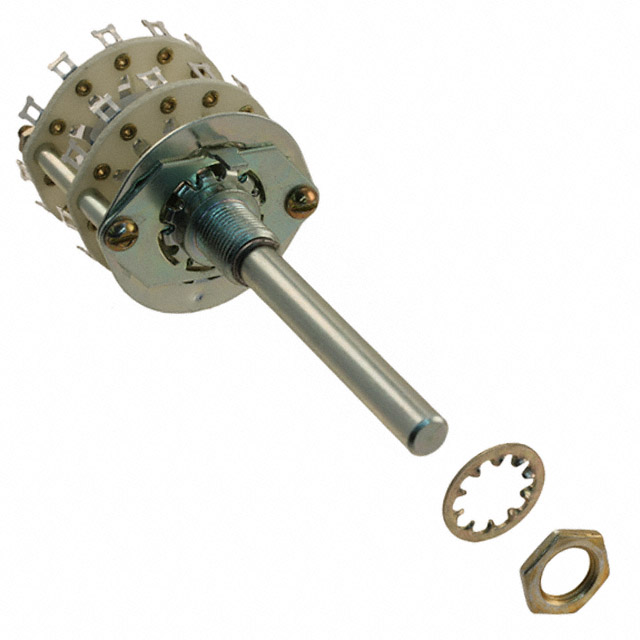

D4G0211N

Active

ELECTROSWITCH

SWITCH ROTARY 2-11POS 500MA 115V

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ROTARY 2-11POS 500MA 115V

Technical Specifications

Parameters and characteristics for this part

Specification	D4G0211N

Actuator Length [x]	47.63 mm
Actuator Type	Round
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck [custom]	SP11T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	500 mA, 1.5 A
Depth Behind Panel [z]	28.55 mm
Index Stops	Adjustable
Number of Decks	2
Number of Poles per Deck	1
Number of Positions [Max]	11
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	9.78 mm
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

Part	Current Rating (Amps)	Actuator Type	Actuator Type [diameter]	Circuit per Deck [custom]	Number of Poles per Deck	Contact Material	Termination Style	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Depth Behind Panel [z]	Index Stops	Contact Timing	Voltage Rating - DC	Number of Positions [Max]	Number of Positions [Min]	Contact Finish	Number of Decks	Angle of Throw	Actuator Length [x]
ELECTROSWITCH D4G0211N	1.5 A 500 mA	Round	6.35 mm	SP11T	1	Brass	Solder Lug	115 V	9.78 mm	28.55 mm	Adjustable	Non-Shorting	28 V	11	2	Silver	2	30 °	47.63 mm
