PTVS10-320C

Obsolete

Bourns Inc.

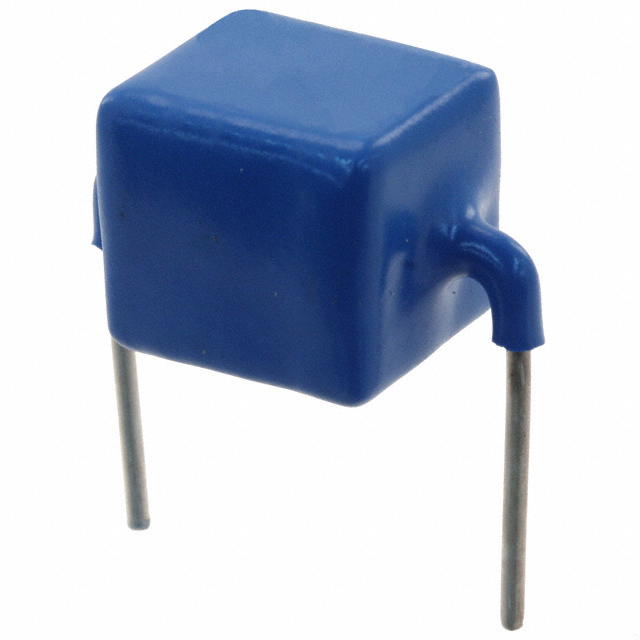

TVS DIODE 320VWM 500VC AXIAL

Search across all available documentation for this part.

Obsolete

Bourns Inc.

TVS DIODE 320VWM 500VC AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	PTVS10-320C

Applications	General Purpose
Bidirectional Channels [custom]	1
Capacitance @ Frequency	2700 pF
Current - Peak Pulse (10/1000µs)	10000 A
Current - Peak Pulse (10/1000µs)	10 kA
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Axial, Right Angle Bend
Package / Case	24.15 mm
Power Line Protection	False
Supplier Device Package	Axial
Type	Zener
Voltage - Breakdown (Min) [Min]	336 V
Voltage - Clamping (Max) @ Ipp	500 V
Voltage - Reverse Standoff (Typ) [Max]	320 V

Part	Mounting Type	Package / Case	Package / Case	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Reverse Standoff (Typ) [Max]	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Bidirectional Channels [custom]	Type	Capacitance @ Frequency	Voltage - Clamping (Max) @ Ipp [Max]	Current - Peak Pulse (10/1000µs)	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp	Voltage - Reverse Standoff (Typ)
Bourns Inc. PTVS10-430C-TH	Through Hole	Axial Right Angle Bend	24.15 mm	General Purpose	125 ¯C	-55 °C	430 V	Axial	440 V	1	Zener	1100 pF	580 V	10000 A	10 kA
Bourns Inc. PTVS10-066C-M	Surface Mount	2-SMD Flat Leads		General Purpose	125 ¯C	-55 °C	66 V	2-SMD	72 V	1	Zener	6700 pF	120 V	10000 A	10 kA
Bourns Inc. PTVS10-170C	Through Hole	Axial Right Angle Bend	24.15 mm	General Purpose	125 ¯C	-40 °C	170 V	Axial	190 V	1	Zener	4000 pF		10000 A	10 kA	300 V
Bourns Inc. PTVS10-076C-SH	Surface Mount	2-SMD		General Purpose	125 ¯C	-55 °C		2-SMD	85 V	1	Zener	6000 pF	140 V	10000 A	10 kA		76 V
Bourns Inc. PTVS10-320C	Through Hole	Axial Right Angle Bend	24.15 mm	General Purpose	125 ¯C	-40 °C	320 V	Axial	336 V	1	Zener	2700 pF		10000 A	10 kA	500 V
