FS3L50R07W2H3FB11BPSA1

Active

Infineon Technologies

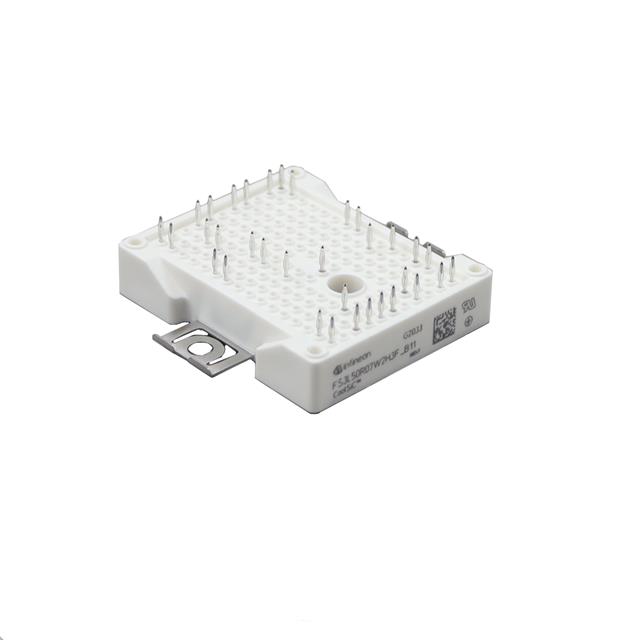

THE FS3L50R07W2H3F_B11 IS A 3-LEVEL IGBT HIGHSPEED 3 MODULE IN A EASYPACK™ 2B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 650 V AND 50 A.

Search across all available documentation for this part.

Active

Infineon Technologies

THE FS3L50R07W2H3F_B11 IS A 3-LEVEL IGBT HIGHSPEED 3 MODULE IN A EASYPACK™ 2B HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 650 V AND 50 A.

Technical Specifications

Parameters and characteristics for this part

Specification	FS3L50R07W2H3FB11BPSA1

Configuration	Three Phase Inverter
Current - Collector (Ic) (Max)	50 A
Current - Collector Cutoff (Max) [Max]	1 mA
IGBT Type	Trench Field Stop
Input	Standard
Input Capacitance (Cies) @ Vce	3.1 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	20 mW
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	1.8 V
Voltage - Collector Emitter Breakdown (Max)	650 V

Part	Current - Collector Cutoff (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Configuration	NTC Thermistor	Vce(on) (Max) @ Vge, Ic	Power - Max [Max]	Supplier Device Package	Mounting Type	Current - Collector (Ic) (Max)	Input Capacitance (Cies) @ Vce	IGBT Type	Input	Voltage - Collector Emitter Breakdown (Max)
Infineon Technologies FS3L50R07W2H3FB11BPSA1	1 mA	150 °C	-40 °C	Module	Three Phase Inverter		1.8 V	20 mW	Module	Chassis Mount	50 A	3.1 nF	Trench Field Stop	Standard	650 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

EasyPACK™2B 650 V, 50 A 3-levelIGBT modulewithCoolSiC™ Schottky diode 650V,PressFIT contact technologyand High Speed IGBT H3.
