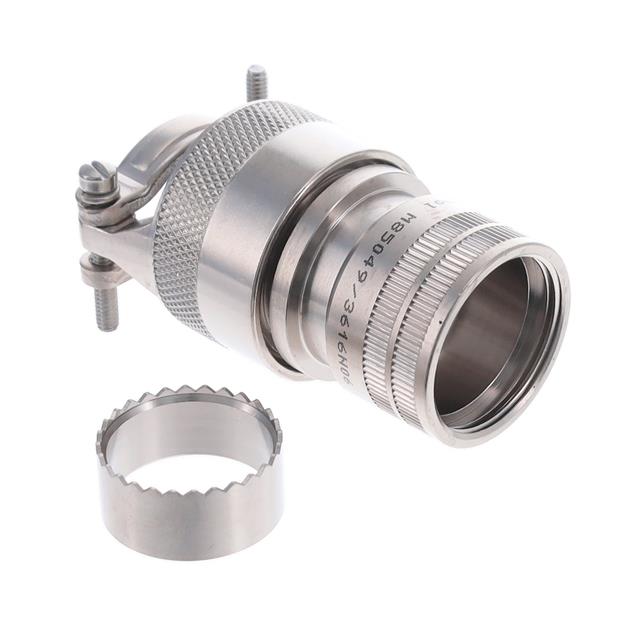

A850493616N06
ActiveAmphenol Interconnect India
CONN BACKSHELL W/CLMP SZ16 17
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A850493616N06
ActiveAmphenol Interconnect India
CONN BACKSHELL W/CLMP SZ16 17
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A850493616N06 | M85049 Series |
|---|---|---|
| - | - | |
| Cable Exit | 180 ° | 45 - 180 ° |
| Cable Opening | - | 0.38 - 31.75 mm |
| Cable Opening | - | 0.13 - 1.25 in |
| Cable Opening | - | 5.08 - 44.45 mm |
| Cable Opening | - | 5.18 - 38.1 mm |
| Cable Opening | - | 0.204 - 1.5 in |
| Cable Opening | - | 3.18 - 23.88 mm |
| Cable Opening | - | 0.125 - 0.94 in |
| Cable Opening | - | 0.42 - 47.75 mm |
| Cable Opening | - | 0.44 - 1.88 in |
| Cable Opening | - | 0.94 - 1.38 in |
| Cable Opening | - | 10.67 - 21.59 mm |
| Cable Opening | - | 2.54 - 4.83 mm |
| Cable Opening | - | 8.38 mm |
| Cable Opening | - | 0.82 - 27.43 in |
| Cable Opening | - | 23.88 mm |
| Cable Opening | - | 0.23 in |
| Cable Opening | - | 0.1 in |
| Cable Opening | - | 5.84 |
| Cable Opening [Max] [custom] | 19.05 mm | 12.19 - 19.05 mm |
| Cable Opening [Max] [custom] | 0.75 in | 0.2 - 1.75 in |
| Cable Opening [Min] [custom] | 14.22 mm | 3.3 - 30.23 mm |
| Cable Opening [Min] [custom] | 0.56 in | 0.13 - 1.19 in |
| Color | Silver | Silver, Olive, Olive Drab, Black |
| Diameter - Outside | - | 1.64 - 86.11 mm |
| Diameter - Outside | - | 0.62 - 3.39 in |
| Diameter - Outside | - | 41.66 mm |
| Features | Clamp Screws | Clamp Screws, Self-Locking, Strain Relief, Self Locking, Rotatable |
| For Use With/Related Products | MIL-DTL-38999 Series I, II | MIL-DTL-26482 Series II, MIL-DTL-83723 Series I, III, MIL-DTL-5015 Series 3400, MIL-DTL-38999 Series III, IV, MIL-DTL-5015, MIL-DTL-83723 Series III, MIL-DTL-38999 Series I, II, MS "V" Thread General Duty "A" Endbell |
| Ingress Protection | - | Environment Resistant |
| Material | Aluminum Alloy | Aluminum Alloy, Stainless Steel |
| Plating | Electroless Nickel | Electroless Nickel, Cadmium Nickel, Cadmium, Anodized |
| Primary Material | Metal | Metal |
| Shell Size - Insert | 17, 16 | 7 - 48 |
| Shell Size - Insert | - | H, C, 12, 14, J, F, D, B, G, 17, E, 27, 18, 10SL, 10S |
| Shell Size - Insert | - | 9 |
| Shell Size - Insert | - | A |
| Shielding | Shielded | Shielded, Unshielded |
| Thread Size | - | 1-20 UNEF, 1/2-20 UNF, 3/4-20 UNEF, 2 1/2-16 UN, 2 1/4-16 UN, 2-18 UNS, 7/8-20 UNEF, UNEF, 5/8-24 UNEF, 1 7/16-18 UNEF, 1 3/16-18 UNEF, 2 3/4-16 UN, 1 5/16-18 UNEF, 3-16 UN |
| Thread Size | - | 18 |
| Type | Backshell, Cable Clamp | Cable Clamp, Backshell, Backshell, Heat Shrink Adapter, Banding, E Nut |
M85049 Series
CONN CABLE CLAMP SZ16 SIL
...
| Part | Shell Size - Insert | Features | Cable Exit | For Use With/Related Products | Thread Size | Type | Plating | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Color | Cable Opening [custom] | Cable Opening [custom] | Material | Shielding | Shell Size - Insert | Ingress Protection | Primary Material | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Thread Size | Cable Opening [diameter] | Cable Opening [Min] | Cable Opening [Max] | Diameter - Outside [diameter] | Cable Opening [Max] [custom] | Cable Opening [custom] | Cable Opening [Max] [diameter] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening | Shell Size - Insert [custom] | Shell Size - Insert [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Interconnect India A8504951S16N | 16 | Clamp Screws, Self-Locking | 90 ° | MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III | 1-20 UNEF | Cable Clamp | Electroless Nickel | 35.31 mm | 1.39 in | Silver | 12.7 mm, 16 mm | 0.5 in, 0.63 in | Aluminum Alloy | ||||||||||||||||||||||||||||
Amphenol Interconnect India A8504939S17W | 17 | Clamp Screws, Self-Locking | 90 ° | MIL-DTL-38999 Series III, IV | Cable Clamp | Cadmium Nickel | 35.81 mm | 1.41 in | Olive | 7.11 mm, 15.49 mm | 0.28 in, 0.61 in | Aluminum Alloy | |||||||||||||||||||||||||||||
Amphenol Interconnect India A8504939S17N | 17 | Clamp Screws, Self-Locking | 90 ° | MIL-DTL-38999 Series III, IV | Cable Clamp | Electroless Nickel | 35.81 mm | 1.41 in | Silver | 7.11 mm, 15.49 mm | 0.28 in, 0.61 in | Aluminum Alloy | |||||||||||||||||||||||||||||
Amphenol Interconnect India A850491823W09 | 23 | Clamp Screws | 180 ° | MIL-DTL-38999 Series III, IV | Backshell, Cable Clamp | Cadmium | 41.91 mm | 1.65 " | Olive Drab | Aluminum Alloy | Shielded | H | Environment Resistant | Metal | 1 in | 28.7 mm | 25.4 mm | 1.13 in | |||||||||||||||||||||||
Amphenol Interconnect India A850491913W02 | 13 | Clamp Screws | 180 ° | MIL-DTL-38999 Series III, IV | Backshell, Cable Clamp | Cadmium | 25.4 mm | 1 in | Olive Drab | 3.3 mm, 6.35 mm | 0.13 in, 0.25 in | Aluminum Alloy | Shielded | C | Metal | ||||||||||||||||||||||||||
Amphenol Interconnect India A8504925150W | Clamp Screws | 180 ° | MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III | Backshell, Cable Clamp | Cadmium | 24.9 mm | 0.98 in | Olive Drab | Aluminum Alloy | Shielded | 12, 14 | Metal | 7.87 mm | 0.31 in | 3.3 mm | 0.13 in | |||||||||||||||||||||||||
Amphenol Interconnect India A8504952S8A | 8 | Clamp Screws, Self-Locking | 180 ° | MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III | 1/2-20 UNF | Cable Clamp | Anodized | 22.6 mm | 0.89 in | Black | Aluminum Alloy | 0.13 in | 5.08 mm | 3.3 mm | 0.2 in | ||||||||||||||||||||||||||
Amphenol Interconnect India A8504952112W | 12 | Clamp Screws | 180 ° | MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III | 3/4-20 UNEF | Cable Clamp | Cadmium Nickel | 21.84 mm | 0.86 in | Olive | Aluminum Alloy | 0.29 in | 10.67 mm | 7.37 mm | 0.42 in | ||||||||||||||||||||||||||
Amphenol Interconnect India A850492411W | 16, 19 | Clamp Screws | 90 ° | MIL-DTL-26482 Series II, MIL-DTL-5015, MIL-DTL-83723 Series III | Backshell, Cable Clamp | Cadmium | 28.19 mm | 1.11 in | Olive Drab | Aluminum Alloy | Shielded | Metal | 0.25 in | 11.18 mm | 6.35 mm | 0.44 in | |||||||||||||||||||||||||
Amphenol Interconnect India A8504952S16N | 16 | Clamp Screws, Self-Locking | 180 ° | MIL-DTL-26482 Series II, MIL-DTL-5015 Series 3400, MIL-DTL-83723 Series I, III | 1-20 UNEF | Cable Clamp | Electroless Nickel | 35.31 mm | 1.39 in | Silver | 12.7 mm, 16 mm | 0.5 in, 0.63 in | Aluminum Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 53.45 | |
| 10 | $ 49.05 | |||
| 25 | $ 47.16 | |||
| 50 | $ 45.59 | |||
| 100 | $ 43.07 | |||
Description
General part information
M85049 Series
Silver Connector Backshell, Cable Clamp 16, 17
