AS11P2TLRQ

Obsolete

STMicroelectronics

ANALOGUE MULTIPLEXER / DEMULTIPLEXER, 2:1, 1, 3 OHM, 1.65V TO 4.5V, DFN, 6 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Obsolete

STMicroelectronics

ANALOGUE MULTIPLEXER / DEMULTIPLEXER, 2:1, 1, 3 OHM, 1.65V TO 4.5V, DFN, 6 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	AS11P2TLRQ

-3db Bandwidth	150 MHz
Channel Capacitance (CS(off), CD(off)) [custom]	25 pF
Channel Capacitance (CS(off), CD(off)) [custom]	25 pF
Channel-to-Channel Matching (ΔRon)	50 mOhm
Charge Injection	33 pC
Crosstalk	-80 dB
Current - Leakage (IS(off)) (Max)	20 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	1
On-State Resistance (Max) [Max]	1.2 Ohm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

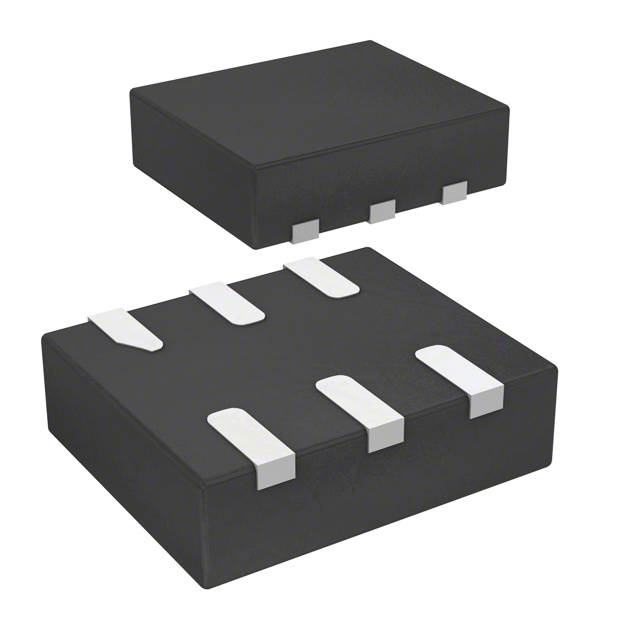

Package / Case	6-UFDFN
Supplier Device Package	6-DFN (1.2x1.0)
Switch Circuit	SPDT
Switch Time (Ton, Toff) (Max) [custom]	28 ns
Switch Time (Ton, Toff) (Max) [custom]	21 ns
Voltage - Supply, Single (V+) [Max]	4.5 V
Voltage - Supply, Single (V+) [Min]	1.65 V

Part	Crosstalk	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Switch Circuit	Channel-to-Channel Matching (ΔRon)	Mounting Type	Current - Leakage (IS(off)) (Max)	Number of Circuits	Package / Case	On-State Resistance (Max) [Max]	Supplier Device Package	-3db Bandwidth	Charge Injection	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Multiplexer/Demultiplexer Circuit
STMicroelectronics AS11P2TLRQ	-80 dB	25 pF	25 pF	85 °C	-40 °C	28 ns	21 ns	SPDT	50 mOhm	Surface Mount	20 nA	1	6-UFDFN	1.2 Ohm	6-DFN (1.2x1.0)	150 MHz	33 pC	4.5 V	1.65 V	2:1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Circuit IC Switch 2:1 1.2Ohm 6-DFN (1.2x1.0)
