953697-1

Active

TE Connectivity AMP Connectors

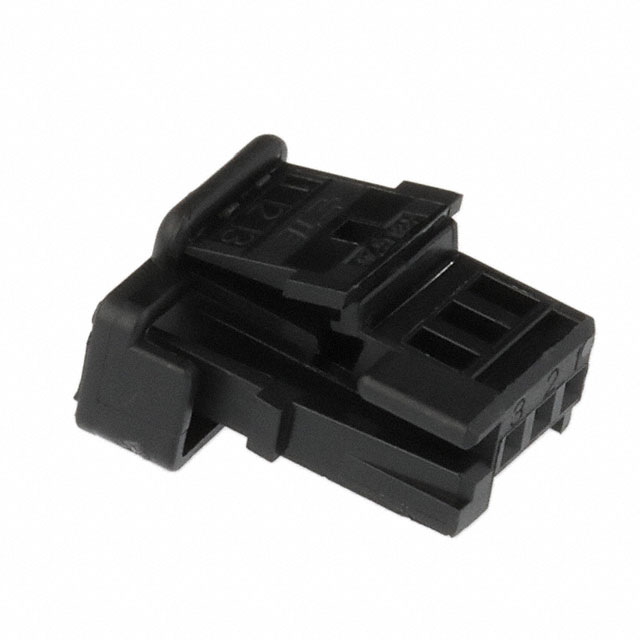

CONN RCPT HSG 3POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 3POS 2.54MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)

Technical documentation and resources

Specification	953697-1	953697 Series

	-	-
Color	Black	Black, White, Blue
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	-	Latch Lock
Features	-	Terminal Position Lock (TPA)
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in

Part	Number of Rows	Insulation Material	Contact Termination	Mounting Type	Note	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Type	Color	Features	Fastening Type
TE Connectivity AMP Connectors 953697-1	1	Polybutylene Terephthalate (PBT), Glass Filled	Crimp	Free Hanging (In-Line)	Contacts Not Included	2.54 mm	0.1 in	85 °C	-40 °C	Receptacle	Female Socket	Black
TE Connectivity AMP Connectors 953697-2	1	Polybutylene Terephthalate (PBT), Glass Filled	Crimp	Free Hanging (In-Line)	Contacts Not Included	2.54 mm	0.1 in	85 °C	-40 °C	Receptacle	Female Socket	White
TE Connectivity AMP Connectors 953697-3	1	Polybutylene Terephthalate (PBT), Glass Filled	Crimp	Free Hanging (In-Line)		2.54 mm	0.1 in	85 °C	-40 °C	Receptacle	Female Socket	Blue	Terminal Position Lock (TPA)	Latch Lock
TE Connectivity AMP Connectors 953697-4
