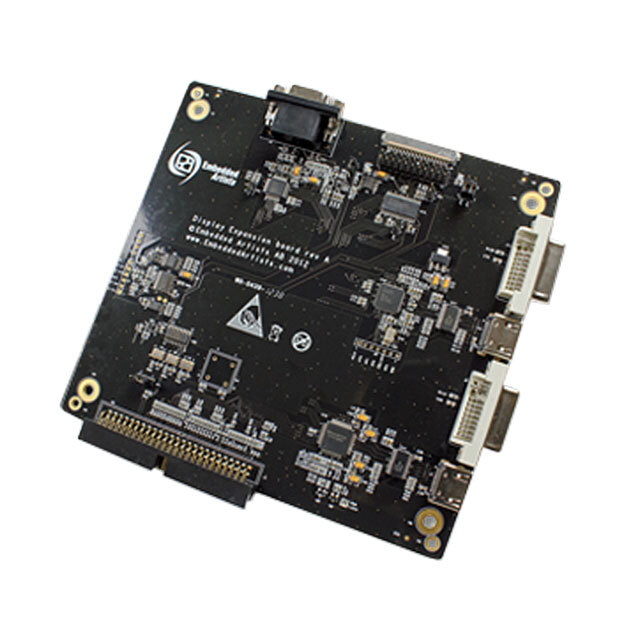

EA-LCD-010

Active

Embedded Artists

DISPLAY EXPANSION BOARD

Search across all available documentation for this part.

Active

Embedded Artists

DISPLAY EXPANSION BOARD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EA-LCD-010	EA-LCD Series

Backlight	-	LED - White
Diagonal Screen Size	-	109.22 - 177.8 mm
Diagonal Screen Size	-	4.3 - 7 in
Display Mode	-	Transmissive
Display Type	-	TFT - Color
Dot Pixels	-	272 - 480
Dot Pixels	-	480 - 800
Dot Pixels	-	WVGA
Dot Size	-	0.19 - 0.2 mm
Dot Size	-	0.2 mm
Dot Size	-	0.06 mm
Function	Embedded Graphics	Embedded Graphics
Graphics Color	-	Green, Red, Blue
Interface	-	Parallel, Parallel/Serial, I2C, SPI
Interface	-	24 Bit
Supplied Contents	Cable(s), Board(s)	Cable(s), Board(s)
Touchscreen	-	Resistive
Type	Display	Display
Viewing Area	-	53.86 mm
Viewing Area	-	95.04 - 152.4 mm
Viewing Area	-	91.44 mm

EXPANSION KIT DISPLAY 4.3 INCH

Part	Display Mode	Diagonal Screen Size	Diagonal Screen Size	Graphics Color	Backlight	Dot Pixels [y]	Dot Pixels [x]	Display Type	Interface	Interface	Dot Size [y]	Dot Size [z]	Viewing Area [y]	Viewing Area [x]	Touchscreen	Viewing Area [z]	Dot Size [x]	Dot Pixels	Function	Type	Supplied Contents
Embedded Artists EA-LCD-011	Transmissive	109.22 mm	4.3 in	Blue, Green, Red	LED - White	272	480	TFT - Color	Parallel	24 Bit	0.2 mm	0.2 mm	53.86 mm	95.04 mm
Embedded Artists EA-LCD-006	Transmissive	177.8 mm	7 in	Blue, Green, Red	LED - White	480	800	TFT - Color	Parallel/Serial		0.19 mm			152.4 mm	Resistive	91.44 mm	0.06 mm	WVGA
Embedded Artists EA-LCD-010																			Embedded Graphics	Display	Board(s), Cable(s)
Embedded Artists EA-LCD-004	Transmissive	109.22 mm	4.3 in	Blue, Green, Red	LED - White	272	480	TFT - Color	I2C, SPI		0.2 mm	0.2 mm			Resistive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 150.18

General part information

Embedded Graphics Display Evaluation Board
