EA-LCD-004

Obsolete

Embedded Artists

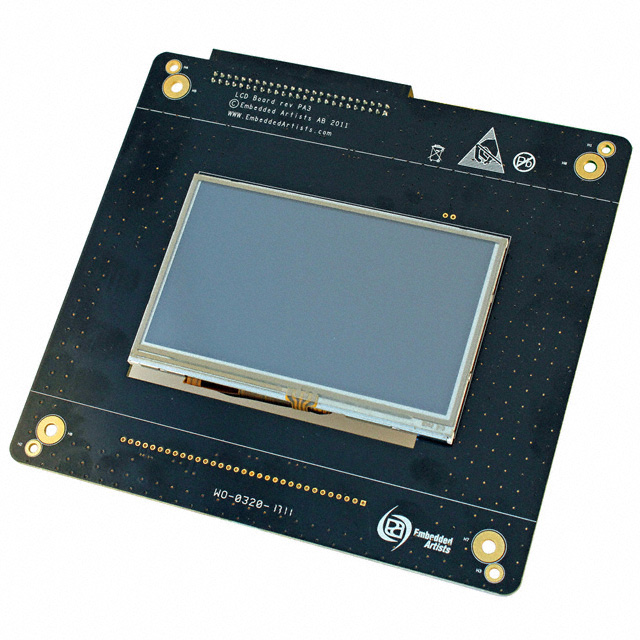

BOARD LCD 4.3"TFT 480X272 PX TCH

Search across all available documentation for this part.

Obsolete

Embedded Artists

BOARD LCD 4.3"TFT 480X272 PX TCH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

LCSC	N/A	1	$ 0.00

General part information

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color I2C, SPI 4.3" (109.22mm) 480 x 272

Technical documentation and resources

Specification	EA-LCD-004	EA-LCD Series

Backlight	LED - White	LED - White
Diagonal Screen Size	109.22 mm	109.22 - 177.8 mm
Diagonal Screen Size	4.3 in	4.3 - 7 in
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color	TFT - Color
Dot Pixels	-	WVGA
Dot Pixels [x]	480	480 - 800
Dot Pixels [y]	272	272 - 480
Dot Size	-	0.06 mm
Dot Size [y]	0.2 mm	0.19 - 0.2 mm
Dot Size [z]	0.2 mm	0.2 mm
Function	-	Embedded Graphics
Graphics Color	Green, Red, Blue	Green, Red, Blue
Interface	I2C, SPI	Parallel, Parallel/Serial, I2C, SPI
Interface	-	24 Bit
Supplied Contents	-	Cable(s), Board(s)
Touchscreen	Resistive	Resistive
Type	-	Display
Viewing Area	-	53.86 mm
Viewing Area	-	95.04 - 152.4 mm
Viewing Area	-	91.44 mm

Part	Display Mode	Diagonal Screen Size	Diagonal Screen Size	Graphics Color	Backlight	Dot Pixels [y]	Dot Pixels [x]	Display Type	Interface	Interface	Dot Size [y]	Dot Size [z]	Viewing Area [y]	Viewing Area [x]	Touchscreen	Viewing Area [z]	Dot Size [x]	Dot Pixels	Function	Type	Supplied Contents
Embedded Artists EA-LCD-011	Transmissive	109.22 mm	4.3 in	Blue, Green, Red	LED - White	272	480	TFT - Color	Parallel	24 Bit	0.2 mm	0.2 mm	53.86 mm	95.04 mm
Embedded Artists EA-LCD-006	Transmissive	177.8 mm	7 in	Blue, Green, Red	LED - White	480	800	TFT - Color	Parallel/Serial		0.19 mm			152.4 mm	Resistive	91.44 mm	0.06 mm	WVGA
Embedded Artists EA-LCD-010																			Embedded Graphics	Display	Board(s), Cable(s)
Embedded Artists EA-LCD-004	Transmissive	109.22 mm	4.3 in	Blue, Green, Red	LED - White	272	480	TFT - Color	I2C, SPI		0.2 mm	0.2 mm			Resistive
