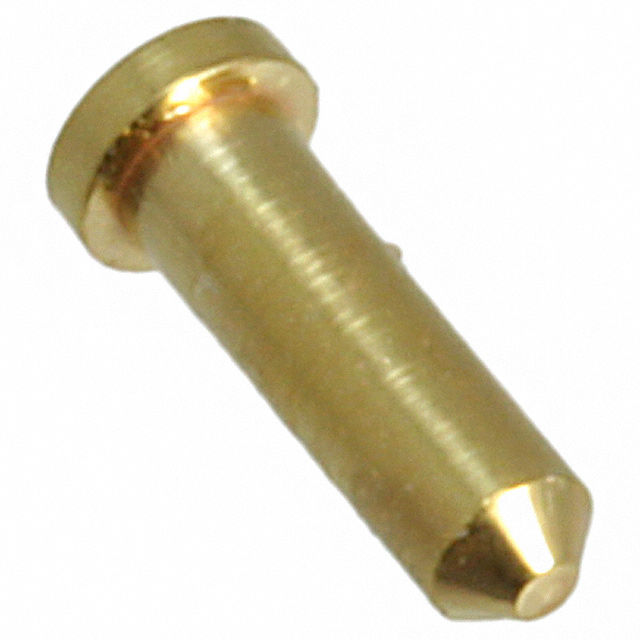

H3153-05 - H3153-05

H3153-05

Active
Harwin Inc.

CONN PIN RCPT .018-.020 SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSub Miniature Sockets Spec SheetDatasheet+3
H3153-05 - H3153-05

H3153-05

Active
Harwin Inc.

CONN PIN RCPT .018-.020 SOLDER

Deep-Dive with AI

DocumentsSub Miniature Sockets Spec SheetDatasheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationH3153-05
Accepts Pin Diameter [Max]0.51 mm
Accepts Pin Diameter [Max]0.02 in
Accepts Pin Diameter [Min]0.46 mm
Accepts Pin Diameter [Min]0.018 in
Contact FinishGold
Contact MaterialBeryllium Copper
Flange Diameter [diameter]1.45 mm
Flange Diameter [diameter]0.057 in
Length - Overall [x]0.142 in
Length - Overall [x]3.61 mm
Mounting Hole Diameter [Max] [diameter]1.09 mm
Mounting Hole Diameter [Max] [diameter]0.043 in
Mounting Hole Diameter [Min] [diameter]0.039 in
Mounting Hole Diameter [Min] [diameter]0.99 mm
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Socket Depth [z]3.15 mm
Socket Depth [z]0.124 "
Tail TypeNo Tail
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.55
10$ 0.42
25$ 0.38
50$ 0.35
100$ 0.32
250$ 0.29
500$ 0.27
1000$ 0.25
2500$ 0.23
NewarkEach 10$ 0.33
100$ 0.28
500$ 0.25
1000$ 0.22
2500$ 0.21
5000$ 0.20

Description

General part information

H3153 Series

Pin Receptacle Connector 0.018" ~ 0.020" (0.46mm ~ 0.51mm) No Tail Solder
