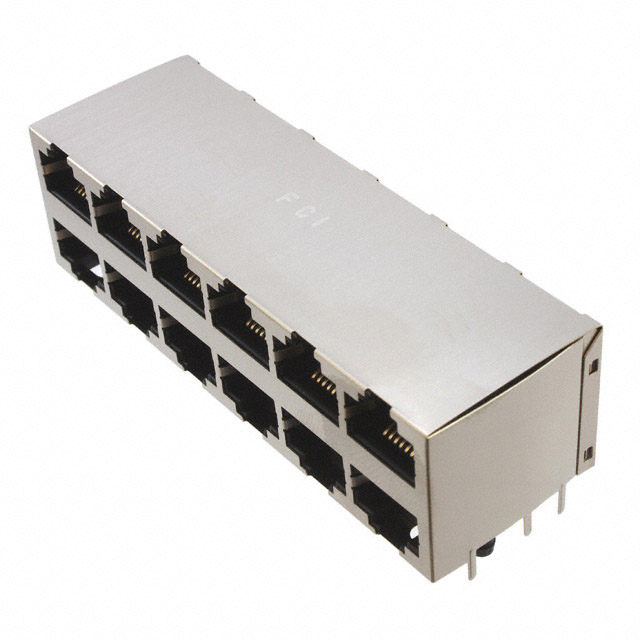

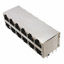

Specification	10118073-500A010LF

Connector Type	Jack, Ethernet, RJ45
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Features	Board Lock
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Contacts	8
Number of Ports	12
Number of Positions	8
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation Angle	90 °
Orientation Direction	Right
Ratings	Cat3
Shielding	Shielded
Tab Direction	Down, Up
Termination	Solder

10118073 Series

Part	Orientation Angle	Orientation Direction	Shielding	Contact Finish	Contact Material	Number of Rows	Connector Type	Ratings	Tab Direction	Number of Ports	LED Color	Features	Number of Positions	Number of Contacts	Mounting Type	Termination	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Housing Material	Operating Temperature (Min)	Operating Temperature (Max)
Amphenol ICC (FCI) 10118073-500A010LF	90 °	Right	Shielded	Gold	Copper Alloy	2	Ethernet Jack RJ45	Cat3	Down Up	12	Does Not Contain LED	Board Lock	8	8	Through Hole	Solder	0	Flash	Flash	Thermoplastic	-40 °C	85 °C
