BU-P4243-0
ActiveMueller Electric Co
BINDING POST, 4MM, 15 A, 1 KV, TIN PLATED CONTACTS, PANEL MOUNT, BLACK
BU-P4243-0
ActiveMueller Electric Co
BINDING POST, 4MM, 15 A, 1 KV, TIN PLATED CONTACTS, PANEL MOUNT, BLACK
Description
General part information
BU-P4243 Series

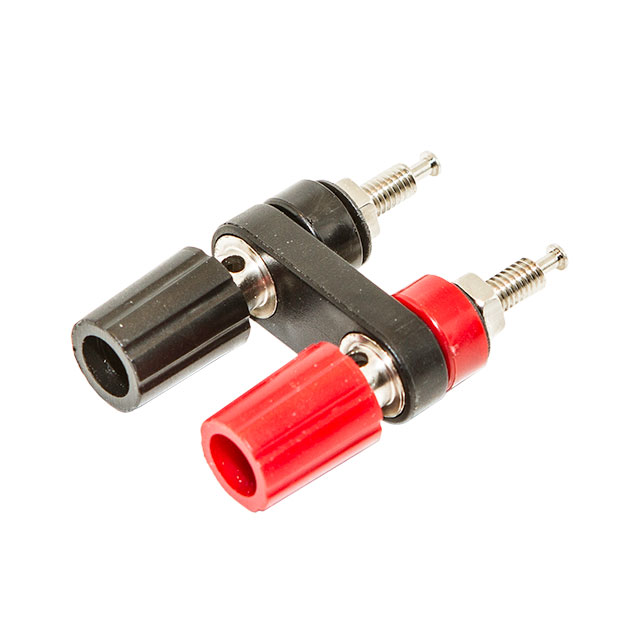

Binding Post Connector Standard, Dual Fluted Black, Red Silver
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-P4243-0 |
|---|---|
| Color | Red, Black |
| Cross Hole Diameter | 0.1 in |
| Current Rating | 15 A |
| Head Style | Fluted |
| Material - Body | Brass |
| Material - Insulation | PC, Polycarbonate |
| Panel Thickness | 0.25 in |
| Plating - Body | Silver |
| Termination | Threaded and Turret |
| Termination Thread | M4 |
| Type | Standard, Dual |
| Voltage Rating | 1000 V |
