2-1103001-3
ActiveTE Connectivity AMP Connectors

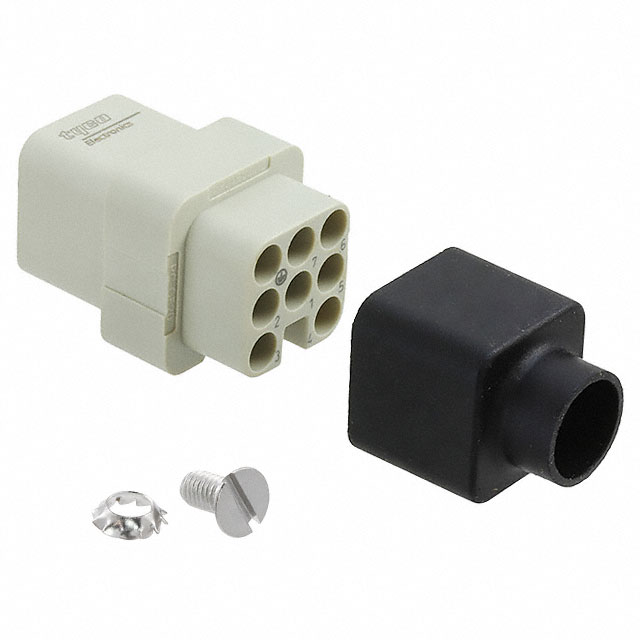

INSERT FEMALE 7POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1103001-3
ActiveTE Connectivity AMP Connectors
INSERT FEMALE 7POS+1GND CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1103001-3 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | Multimate, C12, Type III+, HD.M |
| Current Rating (Amps) | 10 A |
| Gender | Female |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 7+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 1 Gallon |
| Termination Style | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 480 | $ 12.29 | |
1103001 Series
INSERT FEMALE 7POS+1GND CRIMP
| Part | Voltage Rating | Size | Current Rating (Amps) | Gender | Termination Style | Contact Type | Connector Type | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1103001-3 | 250 VDC | 1 Gallon | 10 A | Female | Crimp | C12, HD.M, Multimate, Type III+ | Insert without Contacts | UL94 V-0 | 125 °C | -40 °C | 7+Ground | Gray |
Description
General part information
1103001 Series
Female Insert without Contacts Gray 7+Ground Position Crimp
