1408333-1

Active

TE Connectivity AMP Connectors

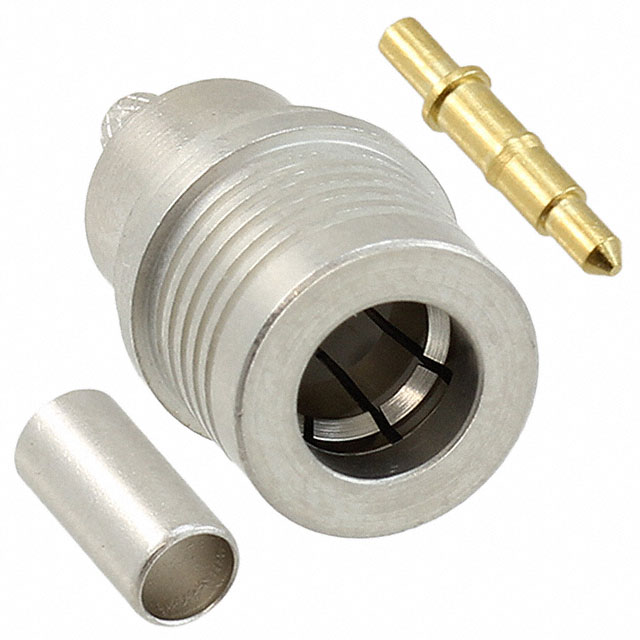

CONN QMA PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QMA PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1408333-1

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-174, 188, 316
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.25 dB
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp
Voltage Rating	335 V

CONN QMA PLUG STR 50 OHM SOLDER

Part	Number of Ports	Insertion Loss	Dielectric Material	Contact Termination	Impedance	Center Contact Material	Connector Type	Shield Termination	Body Material	Mounting Type	Frequency - Max [Max]	Voltage Rating	Fastening Type	Includes	Body Finish	Housing Color	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group
TE Connectivity AMP Connectors 1408333-1	1	0.25 dB	Polytetrafluoroethylene (PTFE)	Solder	50 Ohms	Brass	Male Pin, Plug	Crimp	Brass	Free Hanging (In-Line)	6000 MHz	335 V	Snap-On	1 Connector, 1 Contact, 1 Ferrule	Nickel	Silver	Gold	-40 °C	80 C	188, 316, RG-174

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
