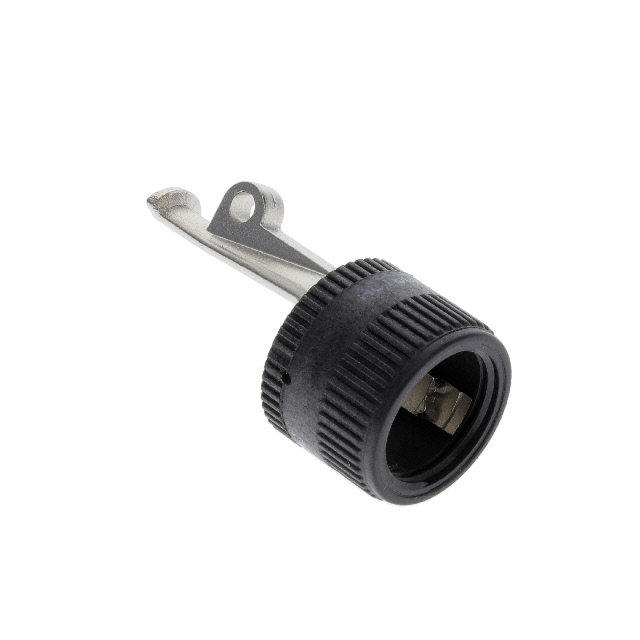

ACT00MB-B-EL00N

Active

TE Connectivity Raychem Cable Protection

CONN BACKSHELL SZB SILVER M15

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN BACKSHELL SZB SILVER M15

Technical Specifications

Parameters and characteristics for this part

Specification	ACT00MB-B-EL00N

Cable Exit	90 °
Color	Silver
Diameter - Outside [diameter]	19.69 mm
Diameter - Outside [diameter]	0.775 in
Features	Tie Wrap Holder, Strain Relief
For Use With/Related Products	MIL-C-38999 Series III
Material	Composite
Plating	Nickel
Primary Material	Composite
Shell Size - Insert	B
Shielding	Unshielded
Thread Size	M15x1
Type	Backshell

Part	Type	Color	Shielding	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert	Plating	Material	Features	For Use With/Related Products	Primary Material	Thread Size	Cable Exit
TE Connectivity Raychem Cable Protection ACT00MB-B-EL00N	Backshell	Silver	Unshielded	19.69 mm	0.775 in	B	Nickel	Composite	Strain Relief Tie Wrap Holder	MIL-C-38999 Series III	Composite	M15x1	90 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Silver Connector Backshell M15x1 B
