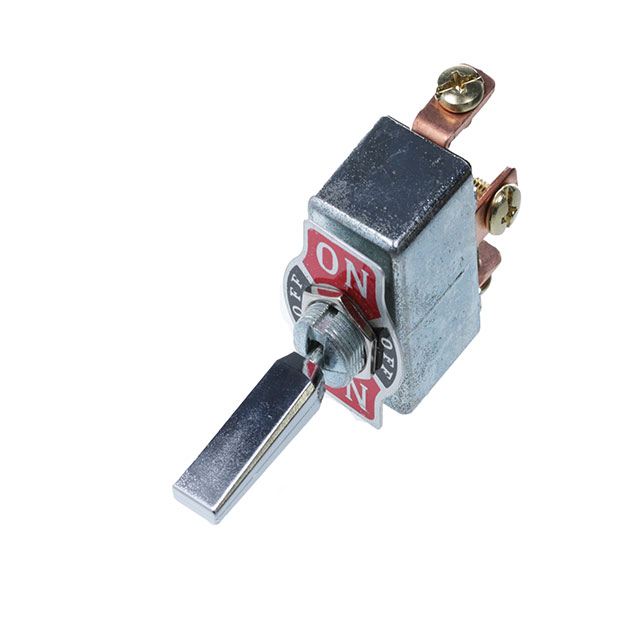

TD1-1F-DC-3-P

Active

Switch Components

SWITCH TOGGLE SPDT 50A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPDT 50A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TD1-1F-DC-3-P

Actuator Length [x]	29.3 mm
Actuator Type	Flatted
Bushing Thread	M12
Bushing Thread	0.75
Circuit	SPDT
Current Rating (Amps)	50 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off-On
Termination Style	Screw Terminal
Voltage Rating - DC	12 V

SWITCH TOGGLE SPDT 50A 12V

Part	Actuator Length [x]	Voltage Rating - DC	Illumination	Current Rating (Amps)	Switch Function	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Bushing Thread	Bushing Thread	Termination Style	Panel Cutout Dimensions [diameter]	Electrical Life
Switch Components TD1-1F-DC-3-P	29.3 mm	12 V	Non-Illuminated	50 A	On-Off-On	Flatted	85 °C	-20 C	SPDT	M12	0.75	Screw Terminal	12.2 mm	6000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.48

General part information

Toggle Switch SPDT Panel Mount
