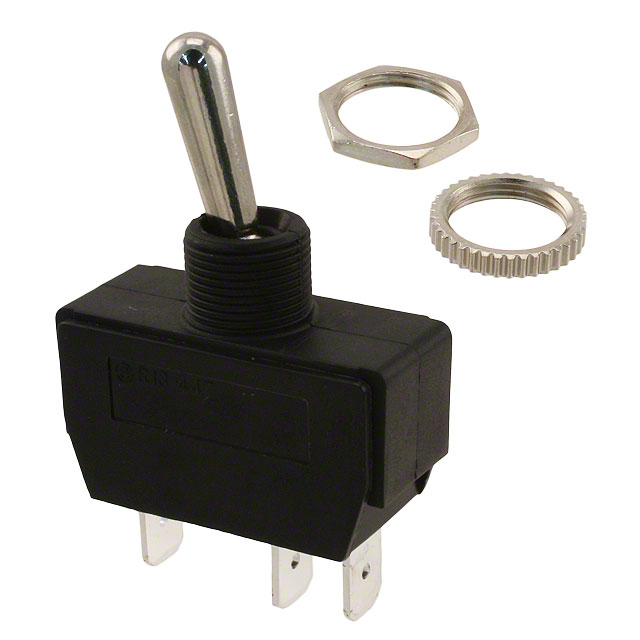

GTS447H101HR

Active

CW Industries

277V SPDT STRAIGHT TOGGLE SWITCHES ROHS

Search across all available documentation for this part.

Active

CW Industries

277V SPDT STRAIGHT TOGGLE SWITCHES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	GTS447H101HR

Actuator Length [x]	17.5 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	16 A
Electrical Life	10000 Cycles
Illumination	Non-Illuminated
Ingress Protection	IP56 - Dust Protected, Water Resistant
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	277 V

277V SPDT STRAIGHT TOGGLE SWITCHES ROHS

Part	Actuator Type	Actuator Length [x]	Illumination	Bushing Thread	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Circuit	Voltage Rating - AC	Termination Style	Current Rating (Amps)	Electrical Life	Panel Cutout Dimensions [diameter]
CW Industries GTS447H101HR	Standard Round	17.5 mm	Non-Illuminated	15/32-32	IP56 - Dust Protected, Water Resistant	0 °C	85 °C	On-Off-Mom	SPDT	277 V	Quick Connect - 0.250" (6.3mm)	16 A	10000 Cycles	12.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
