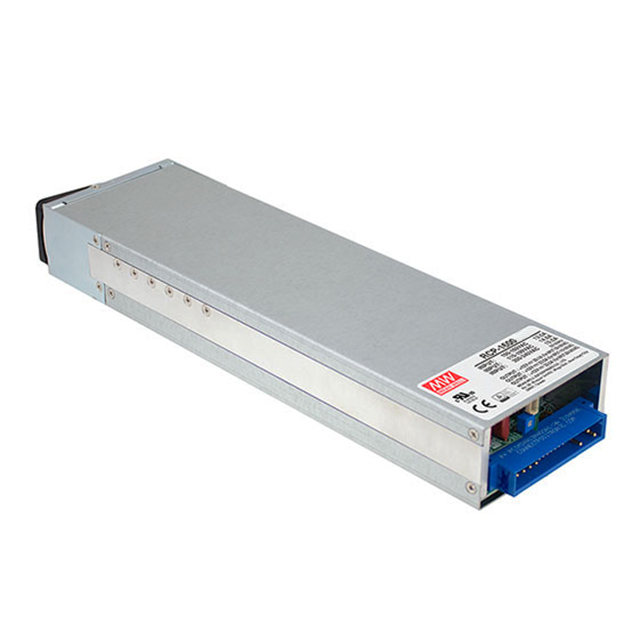

RCP-1600-12

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 1500W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 12V 1500W

Technical Specifications

Parameters and characteristics for this part

Specification	RCP-1600-12

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	125 A
Efficiency	88.5 %
Features	Adjustable Output, Universal Input, I2C Interface, PFC
Minimum Load Required	False
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	1500 W
Size / Dimension [x]	300 mm
Size / Dimension [x]	11.81 in
Size / Dimension [y]	3.35 in
Size / Dimension [y]	85 mm
Size / Dimension [z]	1.61 "
Size / Dimension [z]	41 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Mounting Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Type	Voltage - Output 1	Minimum Load Required	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Efficiency	Applications	Power (Watts)	Approval Agency	Voltage - Isolation	Features	Current - Output 1
MEAN WELL USA Inc. RCP-1600-48	Rack Mount	1.61 "	300 mm	3.35 in	85 mm	41 mm	11.81 in	Enclosed	48 V		90 VAC 127 VDC	264 VAC 370 VDC	70 °C	-30 °C	1	93 %	ITE (Commercial)	1.608 kW	CB CE cURus TUV	3000 V	Adjustable Output I2C Interface PFC Universal Input	33.5 A
MEAN WELL USA Inc. RCP-1600-12	Rack Mount	1.61 "	300 mm	3.35 in	85 mm	41 mm	11.81 in	Enclosed	12 V		90 VAC 127 VDC	264 VAC 370 VDC	70 °C	-30 °C	1	88.5 %	ITE (Commercial)	1500 W	CB CE cURus TUV	3000 V	Adjustable Output I2C Interface PFC Universal Input	125 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 418.75

General part information

Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC, 127 ~ 370 VDC Input
