14-650-10

Active

Aries Electronics

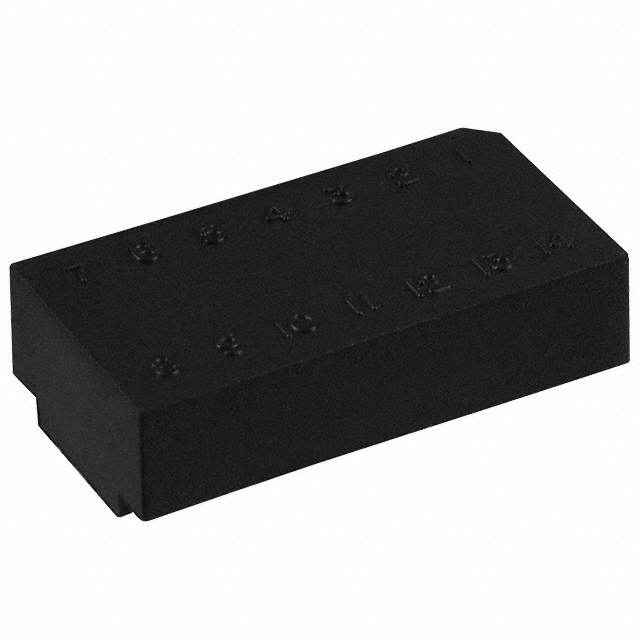

.27" COVER 14 PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

14-650-10

Active

Aries Electronics

.27" COVER 14 PIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	14-650-10

Accessory Type	Cap (Cover)
For Use With/Related Products	0600 Series Header
Number of Positions	14

14-650 Series

Part	Contact Material - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Material - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Termination	Housing Material	Number of Positions or Pins (Grid)	Termination Post Length	Termination Post Length	Type	Type	Type	Pitch - Post	Pitch - Post	Contact Finish - Post	Mounting Type	Accessory Type	For Use With/Related Products	Number of Positions	Termination Post Length [x]	Termination Post Length [x]
Aries Electronics 14-6503-31	Beryllium Copper	0.1 in	2.54 mm	3 A	UL94 V-0	10 çin	0.25 çm	Gold	Phosphor Bronze	-55 °C	125 °C	10 çin	0.25 çm	Closed Frame	Wire Wrap	Glass Filled Nylon 4/6 Polyamide (PA46)	14	0.5 in	12.7 mm	DIP	0.6 in	15.24 mm	2.54 mm	0.1 in	Gold	Through Hole
Aries Electronics 14-650-20																											Cap (Cover)	0600 Series Header	14
Aries Electronics 14-6503-21	Beryllium Copper	0.1 in	2.54 mm	3 A	UL94 V-0	10 çin	0.25 çm	Gold	Phosphor Bronze	-55 °C	125 °C	10 çin	0.25 çm	Closed Frame	Wire Wrap	Glass Filled Nylon 4/6 Polyamide (PA46)	14			DIP	0.6 in	15.24 mm	2.54 mm	0.1 in	Gold	Through Hole				0.36 in	9.14 mm
Aries Electronics 14-650-30																											Cap (Cover)	0600 Series Header	14
Aries Electronics 14-650-40																											Cap (Cover)	0600 Series Header	14
Aries Electronics 14-6503-20	Beryllium Copper	0.1 in	2.54 mm	3 A	UL94 V-0	10 çin	0.25 çm	Gold	Phosphor Bronze	-55 °C	105 ░C	200 µin	5.08 µm	Closed Frame	Wire Wrap	Glass Filled Nylon 4/6 Polyamide (PA46)	14			DIP	0.6 in	15.24 mm	2.54 mm	0.1 in	Tin	Through Hole				0.36 in	9.14 mm
Aries Electronics 14-650-10																											Cap (Cover)	0600 Series Header	14
Aries Electronics 14-6501-20	Phosphor Bronze	0.1 in	2.54 mm	1.5 A	UL94 V-0	200 µin	5.08 µm		Phosphor Bronze	-55 °C	125 °C	200 µin	5.08 µm	Closed Frame	Wire Wrap	Glass Filled Nylon 4/6 Polyamide (PA46)	14	0.69 in	17.52 mm	DIP	0.6 in	15.24 mm	2.54 mm	0.1 in	Tin	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.85
		10	$ 2.94
		25	$ 2.65
		50	$ 2.46
		100	$ 2.28
		250	$ 2.06
		500	$ 1.92
		1000	$ 1.79
		2500	$ 1.64

Description

General part information

14-650 Series

Connector Cap (Cover) For 0600 Series Header
