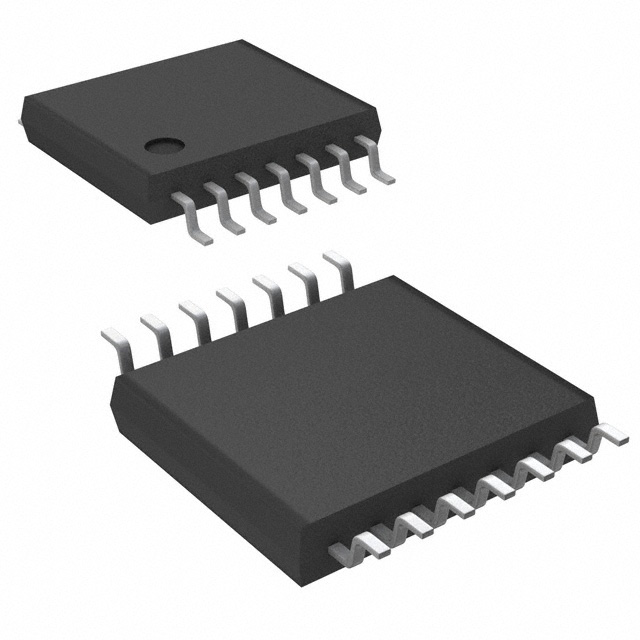

74LV32PW,112 - 14-TSSOP

74LV32PW,112

Active
NXP USA Inc.

IC GATE OR 4CH 2-INP 14TSSOP

Deep-Dive with AI

Search across all available documentation for this part.

Documents
74LV32PW,112 - 14-TSSOP

74LV32PW,112

Active
NXP USA Inc.

IC GATE OR 4CH 2-INP 14TSSOP

Deep-Dive with AI

Documents
SpecificationsPricingSeriesDescriptionDocuments

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification74LV32PW,11274LV32 Series
--
Current - Output High, Low [custom]12 mA12 mA
Current - Output High, Low [custom]12 mA12 mA
Current - Quiescent (Max) [Max]40 µA40 µA
Input Logic Level - High [Max]2 V2 V
Input Logic Level - High [Min]0.9 V0.9 V
Input Logic Level - Low [Max]0.8 V0.8 V
Input Logic Level - Low [Min]0.3 V0.3 V
Logic TypeOR GateOR Gate
Max Propagation Delay @ V, Max CL8 ns8 ns
Mounting TypeSurface MountSurface Mount, Through Hole
Number of Circuits44
Number of Inputs22
Operating Temperature [Max]125 °C125 °C
Operating Temperature [Min]-40 °C-40 °C
Package / Case14-TSSOP14-SOIC, 14-TSSOP, 14-SSOP, 14-DIP, 14-VFQFN Exposed Pad
Package / Case-3.9 - 7.62 mm
Package / Case-0.154 - 5.3 in
Package / Case-0.209 in
Package / Case [custom]0.173 in0.173 in
Package / Case [custom]4.4 mm4.4 mm
Supplier Device Package14-TSSOP14-SO, 14-TSSOP, 14-SSOP, 14-DIP, 14-DHVQFN (2.5x3)
Voltage - Supply [Max]5.5 V5.5 V
Voltage - Supply [Min]1 V1 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

74LV32 Series

IC GATE OR 4CH 2-INP 14SO

PartLogic TypeSupplier Device PackageVoltage - Supply [Min]Voltage - Supply [Max]Number of InputsCurrent - Quiescent (Max) [Max]Operating Temperature [Max]Operating Temperature [Min]Max Propagation Delay @ V, Max CLMounting TypeInput Logic Level - High [Max]Input Logic Level - High [Min]Current - Output High, Low [custom]Current - Output High, Low [custom]Package / CasePackage / CasePackage / CaseInput Logic Level - Low [Min]Input Logic Level - Low [Max]Number of CircuitsPackage / Case [custom]Package / Case [custom]Package / Case
NXP USA Inc.
74LV32D,112
OR Gate IC 4 Channel 14-SO
OR Gate
14-SO
1 V
5.5 V
2
40 µA
125 °C
-40 °C
8 ns
Surface Mount
2 V
0.9 V
12 mA
12 mA
3.9 mm
0.154 in
14-SOIC
0.3 V
0.8 V
4
NXP USA Inc.
74LV32PW,118
OR Gate IC 4 Channel 14-TSSOP
OR Gate
14-TSSOP
1 V
5.5 V
2
40 µA
125 °C
-40 °C
8 ns
Surface Mount
2 V
0.9 V
12 mA
12 mA
14-TSSOP
0.3 V
0.8 V
4
0.173 in
4.4 mm
NXP USA Inc.
74LV32DB,112
OR Gate IC 4 Channel 14-SSOP
OR Gate
14-SSOP
1 V
5.5 V
2
40 µA
125 °C
-40 °C
8 ns
Surface Mount
2 V
0.9 V
12 mA
12 mA
5.3 mm
14-SSOP
0.3 V
0.8 V
4
0.209 in
NXP USA Inc.
74LV32N,112
OR Gate IC 4 Channel 14-DIP
OR Gate
14-DIP
1 V
5.5 V
2
40 µA
125 °C
-40 °C
8 ns
Through Hole
2 V
0.9 V
12 mA
12 mA
7.62 mm
0.3 in
14-DIP
0.3 V
0.8 V
4
NXP USA Inc.
74LV32DB,118
IC Channel
NXP USA Inc.
74LV32D,118
OR Gate IC 4 Channel 14-SO
OR Gate
14-SO
1 V
5.5 V
2
40 µA
125 °C
-40 °C
8 ns
Surface Mount
2 V
0.9 V
12 mA
12 mA
3.9 mm
0.154 in
14-SOIC
0.3 V
0.8 V
4
NXP USA Inc.
74LV32BQ,115
OR Gate IC 4 Channel 14-DHVQFN (2.5x3)
OR Gate
14-DHVQFN (2.5x3)
1 V
5.5 V
2
40 µA
125 °C
-40 °C
8 ns
Surface Mount
2 V
0.9 V
12 mA
12 mA
14-VFQFN Exposed Pad
0.3 V
0.8 V
4
NXP USA Inc.
74LV32PW,112
OR Gate IC 4 Channel 14-TSSOP
OR Gate
14-TSSOP
1 V
5.5 V
2
40 µA
125 °C
-40 °C
8 ns
Surface Mount
2 V
0.9 V
12 mA
12 mA
14-TSSOP
0.3 V
0.8 V
4
0.173 in
4.4 mm

Description

General part information

74LV32 Series

OR Gate IC 4 Channel 14-TSSOP
