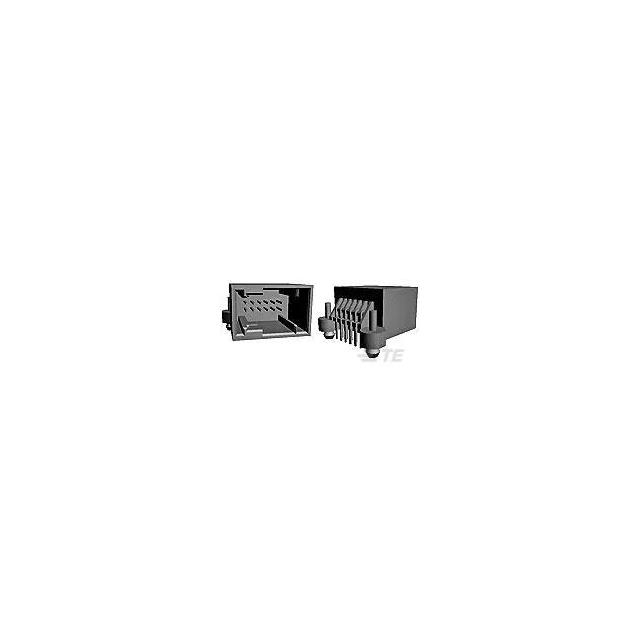

1379030-3

Active

TE CONNECTIVITY

12POS MQS .63 HEADER 90DEG

Search across all available documentation for this part.

Active

TE CONNECTIVITY

12POS MQS .63 HEADER 90DEG

Technical Specifications

Parameters and characteristics for this part

Specification	1379030-3

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Features	Mounting Flange, Board Lock
Insulation Color	Brown
Insulation Height	0.776 in
Insulation Height	19.7 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 HB
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	12 V

12POS MQS .63 HEADER 90DEG

Part	Shrouding	Number of Positions	Contact Shape	Material Flammability Rating	Insulation Color	Features	Mounting Type	Insulation Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Style	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Contact Material	Contact Type	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Fastening Type	Connector Type	Termination
TE CONNECTIVITY 1379030-3	Shrouded - 4 Wall	12	Square	UL94 HB	Brown	Board Lock, Mounting Flange	Through Hole, Right Angle	Polybutylene Terephthalate (PBT), Glass Filled	12 V	85 °C	-40 °C	Tin	Board to Cable/Wire	All	0.1 in	2.54 mm	Copper Alloy	Male Pin	0.776 in	19.7 mm	2.54 mm	0.1 in	2	Friction Lock	Header	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Horizontal, Wire-to-Board, 12 Position, 2 Rows, 2.54mm [.1in] Centerline, Tin (Sn), Printed Circuit Board, Signal, Brown
