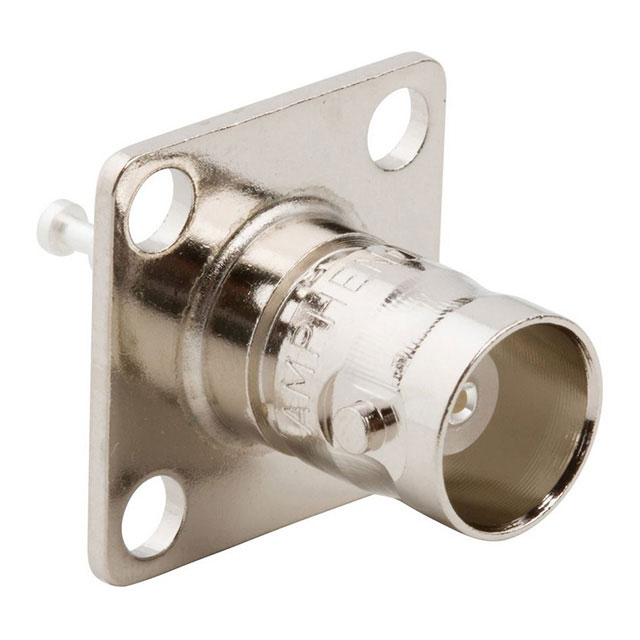

000-4500

Active

AMPHENOL RF

CONN BNC RCPT STR 50 OHM TURRET

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN BNC RCPT STR 50 OHM TURRET

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	000-4500	000-45 Series

Adapter Series	-	BNC to BNC
Adapter Type	-	Jack to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Silver	Silver
Center Gender	-	Female to Female
Connector Style	BNC	BNC
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Turret	Turret
Conversion Type	-	Same Series
Convert From (Adapter End)	-	BNC Jack, Female Socket
Convert To (Adapter End)	-	Female Socket, BNC Jack
Dielectric Material	Copolymer	Polytetrafluoroethylene (PTFE), Copolymer
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	-	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	0.2 dB	0.2 dB
Mating Cycles	500	500
Mounting Feature	Flange	Bulkhead, Flange
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder
Style	-	Straight
Voltage Rating	500 V	500 V

CONN BNC ADAPTER 0HZ TO 4GHZ 50OHM ST PANEL MOUNT F/F SILVER

Part	Convert From (Adapter End)	Convert To (Adapter End)	Adapter Series	Conversion Type	Adapter Type	Center Contact Material	Mating Cycles	Center Gender	Center Contact Plating	Body Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Style	Dielectric Material	Fastening Type	Impedance	Mounting Feature	Includes	Voltage Rating	Contact Termination	Connector Type	Frequency - Max [Max]	Shield Termination	Number of Ports	Connector Style	Insertion Loss	Housing Color
AMPHENOL RF 000-4525	BNC Jack, Female Socket	BNC Jack, Female Socket	BNC to BNC	Same Series	Jack to Jack	Beryllium Copper	500	Female to Female	Silver	Brass	Nickel	-65 ░C	165 °C	Straight	Polytetrafluoroethylene (PTFE)	Bayonet Lock	50 Ohms	Bulkhead	1 Connector, 1 Lockwasher, 1 Nut
AMPHENOL RF 000-4500						Beryllium Copper	500		Silver	Brass	Nickel	-65 ░C	165 °C		Copolymer	Bayonet Lock	50 Ohms	Flange		500 V	Turret	Female Socket, Jack	4 GHz	Solder	1	BNC	0.2 dB	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 19.71

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Turret
