000-4525

Active

AMPHENOL RF

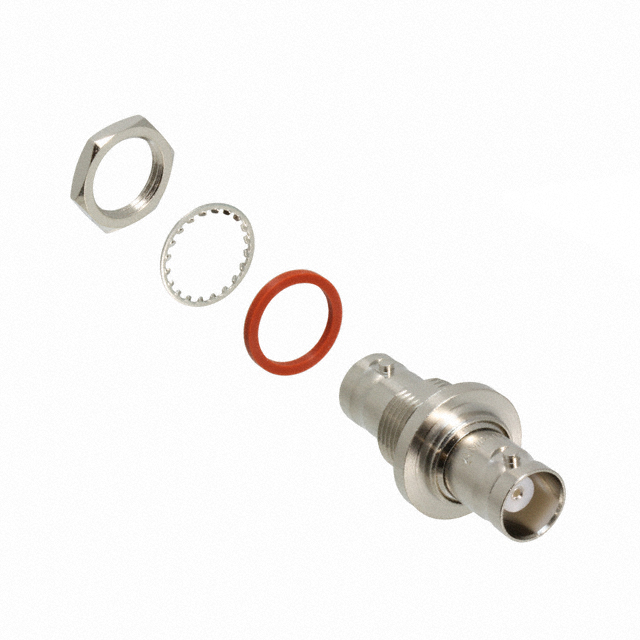

CONN BNC ADAPTER 0HZ TO 4GHZ 50OHM ST PANEL MOUNT F/F SILVER

Search across all available documentation for this part.

Active

AMPHENOL RF

CONN BNC ADAPTER 0HZ TO 4GHZ 50OHM ST PANEL MOUNT F/F SILVER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	000-4525	000-45 Series

Adapter Series	BNC to BNC	BNC to BNC
Adapter Type	Jack to Jack	Jack to Jack
Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Silver	Silver
Center Gender	Female to Female	Female to Female
Connector Style	-	BNC
Connector Type	-	Female Socket, Jack
Contact Termination	-	Turret
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Copolymer
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max	-	4 GHz
Housing Color	-	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	-	0.2 dB
Mating Cycles	500	500
Mounting Feature	Bulkhead	Bulkhead, Flange
Number of Ports	-	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	-	Solder
Style	Straight	Straight
Voltage Rating	-	500 V

CONN BNC ADAPTER 0HZ TO 4GHZ 50OHM ST PANEL MOUNT F/F SILVER

Part	Convert From (Adapter End)	Convert To (Adapter End)	Adapter Series	Conversion Type	Adapter Type	Center Contact Material	Mating Cycles	Center Gender	Center Contact Plating	Body Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Style	Dielectric Material	Fastening Type	Impedance	Mounting Feature	Includes	Voltage Rating	Contact Termination	Connector Type	Frequency - Max [Max]	Shield Termination	Number of Ports	Connector Style	Insertion Loss	Housing Color
AMPHENOL RF 000-4525	BNC Jack, Female Socket	BNC Jack, Female Socket	BNC to BNC	Same Series	Jack to Jack	Beryllium Copper	500	Female to Female	Silver	Brass	Nickel	-65 ░C	165 °C	Straight	Polytetrafluoroethylene (PTFE)	Bayonet Lock	50 Ohms	Bulkhead	1 Connector, 1 Lockwasher, 1 Nut
