M7VWK-2506R

Active

D-SUB CABLE MMU25K/MC26M/MFU25K

Search across all available documentation for this part.

Active

D-SUB CABLE MMU25K/MC26M/MFU25K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

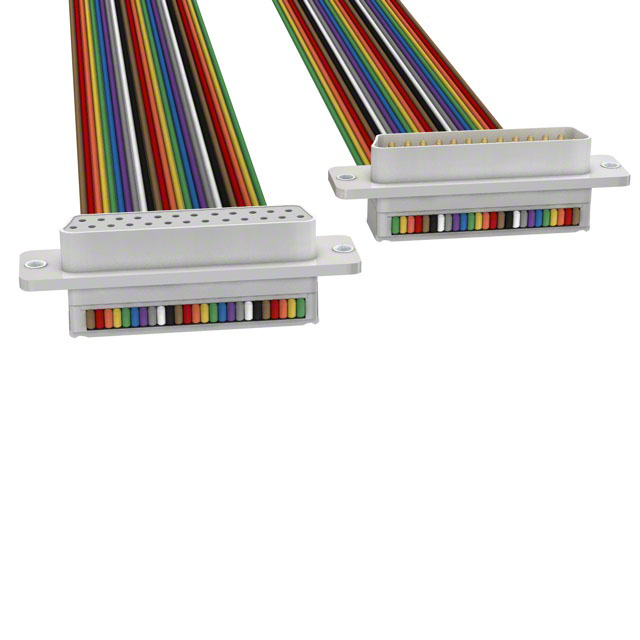

D-Sub Cable Assembly DB25 Multiple, Ribbon 6.00' (1.83m) Receptacle, Female Sockets to Plug, Male Pins Unshielded

Technical documentation and resources

Parameters and characteristics commom to parts in this series

D-SUB CABLE MMU15K/MC16M/MFU15K

Part	Contact Finish	Length	Length	Shielding	1st Connector	Contact Finish Thickness	Contact Finish Thickness	Color	2nd Connector	Number of Positions	Type
3M M7VWK-1506R	Gold	6 ft	1.83 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin	Multiple, Ribbon	Plug, Male Pins	15	DB15
3M M7VWK-5006R	Gold	6 ft	1.83 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin	Multiple, Ribbon	Plug, Male Pins	50	DB50
3M M7VWK-0906J	Gold	6 ft	1.83 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin		Plug, Male Pins	9	DB9
3M M7VWK-2506R	Gold	6 ft	1.83 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin	Multiple, Ribbon	Plug, Male Pins		DB25
3M M7VWK-0910J	Gold	10 ft	3.05 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin		Plug, Male Pins	9	DB9
3M M7VWK-3710J	Gold	10 ft	3.05 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin		Plug, Male Pins	37	DB37
3M M7VWK-5010R	Gold	10 ft	3.05 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin	Multiple, Ribbon	Plug, Male Pins	50	DB50
3M M7VWK-2510J	Gold	10 ft	3.05 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin		Plug, Male Pins		DB25
3M M7VWK-3706R	Gold	6 ft	1.83 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin	Multiple, Ribbon	Plug, Male Pins	37	DB37
3M M7VWK-2506J	Gold	6 ft	1.83 m	Unshielded	Female Sockets, Receptacle	0.76 Ám	30 Áin		Plug, Male Pins		DB25
