EW-12-12-L-S-605

Active

Samtec Inc.

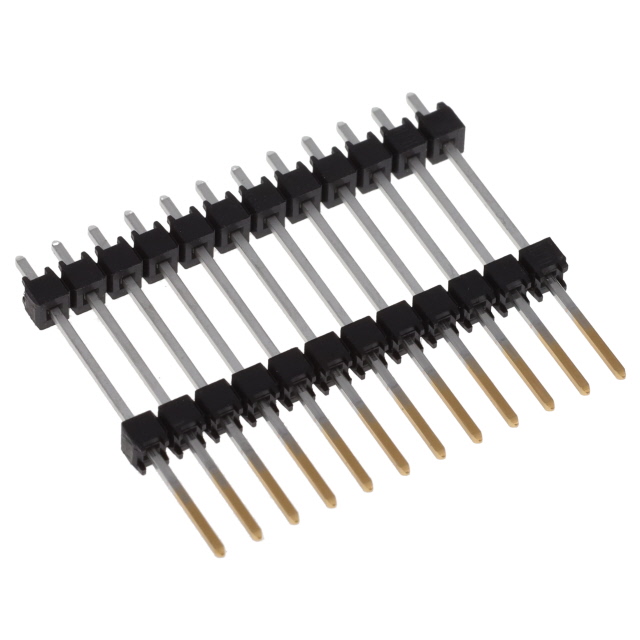

CONN BOARD STACKER HDR 12 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch +1

EW-12-12-L-S-605

Active

Samtec Inc.

CONN BOARD STACKER HDR 12 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsDatasheet Flexible Board Stacking Header with Fixed Tail Length, 0.100" Pitch +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EW-12-12-L-S-605

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	1.03 in
Length - Overall Pin [x]	26.162 mm
Length - Post (Mating) [x]	2.413 mm
Length - Post (Mating) [x]	0.095 in
Length - Stack Height [x]	0.605 in
Length - Stack Height [x]	15.367 mm
Length - Tail	0.33 in
Length - Tail	8.382 mm
Mounting Type	Through Hole
Number of Positions	12
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

EW-12-12 Series

Part	Mounting Type	Number of Positions	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Pitch [x]	Pitch [x]	Number of Rows	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Row Spacing [x]	Row Spacing	Length - Overall Pin [x]	Length - Overall Pin [x]	Contact Finish - Post (Mating)	Termination	Length - Stack Height [x]	Length - Stack Height [x]	Length - Tail	Length - Tail	Color	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. EW-12-12-F-D-585	Through Hole	24	2.921 mm	0.115 in	2.54 mm	0.1 in	2	3 Áin	0.076 Ám	0.1 in	2.54 mm	1.03 in	26.162 mm	Gold	Solder	14.859 mm	0.585 in	0.33 in	8.382 mm	Black
Samtec Inc. EW-12-12-G-D-585	Through Hole	24	2.921 mm	0.115 in	2.54 mm	0.1 in	2	10 Áin	0.25 Ám	0.1 in	2.54 mm	1.03 in	26.162 mm	Gold	Solder	14.859 mm	0.585 in	0.33 in	8.382 mm	Black
Samtec Inc. EW-12-12-G-D-540	Through Hole	24	4.064 mm	0.16 in	2.54 mm	0.1 in	2	10 Áin	0.25 Ám	0.1 in	2.54 mm	1.03 in	26.162 mm	Gold	Solder	13.716 mm	0.54 in	0.33 in	8.382 mm	Black
Samtec Inc. EW-12-12-G-D-400	Through Hole	24	7.62 mm	0.3 in	2.54 mm	0.1 in	2	10 Áin	0.25 Ám	0.1 in	2.54 mm	1.03 in	26.162 mm	Gold	Solder	10.16 mm	0.4 in	0.33 in	8.382 mm	Black
Samtec Inc. EW-12-12-T-S-700	Through Hole	12			2.54 mm	0.1 in	1					1.03 in	26.162 mm	Tin	Solder	17.78 mm	0.7 in	0.33 in	8.382 mm	Black
Samtec Inc. EW-12-12-L-S-605	Through Hole	12	2.413 mm	0.095 in	2.54 mm	0.1 in	1	10 Áin	0.25 Ám			1.03 in	26.162 mm	Gold	Solder	15.367 mm	0.605 in	0.33 in	8.382 mm	Black
Samtec Inc. EW-12-12-G-D-699	Through Hole	24	0.025 mm	0.001 in	2.54 mm	0.1 in	2	10 Áin	0.25 Ám	0.1 in	2.54 mm	1.03 in	26.162 mm	Gold	Solder	17.755 mm	0.699 in	0.33 in	8.382 mm	Black
Samtec Inc. EW-12-12-G-D-425	Through Hole	24	6.985 mm	0.275 in	2.54 mm	0.1 in	2	10 Áin	0.25 Ám	0.1 in	2.54 mm	1.03 in	26.162 mm	Gold	Solder			0.33 in	8.382 mm	Black	0.425 in	10.8 mm
Samtec Inc. EW-12-12-G-D-200	Through Hole	24	12.7 mm	0.5 in	2.54 mm	0.1 in	2	10 Áin	0.25 Ám	0.1 in	2.54 mm	1.03 in	26.162 mm	Gold	Solder			0.33 in	8.382 mm	Black
Samtec Inc. EW-12-12-T-D-580	Through Hole	24	3.048 mm	0.12 in	2.54 mm	0.1 in	2			0.1 in	2.54 mm	1.03 in	26.162 mm	Tin	Solder	14.732 mm	0.58 in	0.33 in	8.382 mm	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 2.08
Digikey	Bulk	1	$ 3.09
		10	$ 2.36
		100	$ 1.82
		500	$ 1.53
		1000	$ 1.43
		5000	$ 1.22
