84-5020.0020

Active

EAO

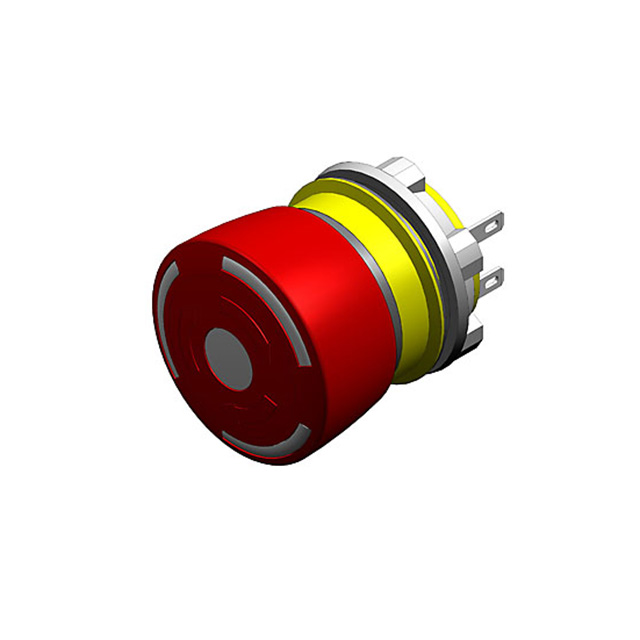

SWITCH ESTOP TWIST RESET 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH ESTOP TWIST RESET 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	84-5020.0020	84-5020 Series

Circuit	SPST-NC	SPST-NC
Current Rating (Amps)	5 A	5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Reset Operation	Twist	Twist
Switch Function	On-Off	On-Off
Termination Style	Quick Connect - 0.110" (2.8mm)	Cable Leads, Quick Connect - 0.110" (2.8mm)
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	-	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

SWITCH ESTOP TWIST RESET 5A 250V

Part	Mounting Type	Circuit	Reset Operation	Voltage Rating - DC	Voltage Rating - AC	Ingress Protection	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Termination Style
EAO 84-5020.0040	Panel Mount, Front	SPST-NC	Twist	250 V	250 V	IP65 - Dust Tight, Water Resistant	5 A	22.3 mm	65 °C	-25 °C	On-Off	Cable Leads
EAO 84-5020.0020	Panel Mount, Front	SPST-NC	Twist		250 V	IP65 - Dust Tight, Water Resistant	5 A	22.3 mm	65 °C	-25 °C	On-Off	Quick Connect - 0.110" (2.8mm)

General part information

SWITCH ESTOP TWIST RESET 5A 250V

Technical documentation and resources
