1376387-1

Active

TE Connectivity AMP Connectors

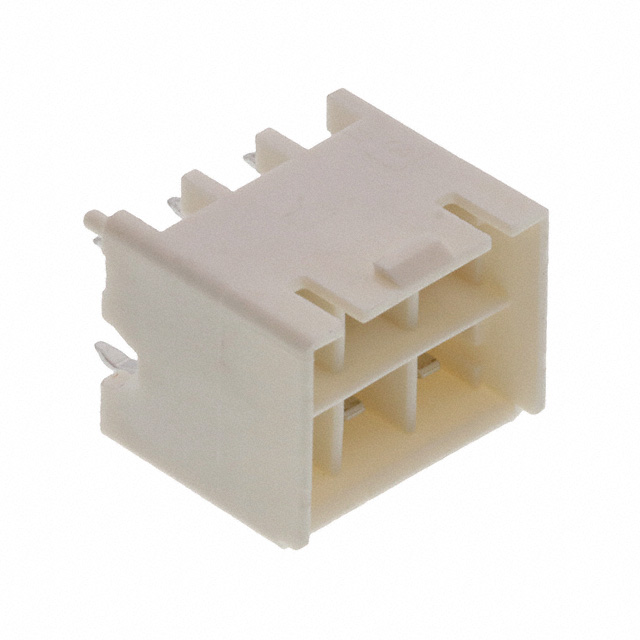

CONN HEADER VERT 6POS 5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 6POS 5MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1376387-1	1376387 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Post	Tin	Tin
Contact Length - Post	3.5 mm	3.5 mm
Contact Length - Post	0.138 in	0.138 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Rectangular	Rectangular
Contact Type	Tab	Tab
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Board Guide	Board Guide
Insulation Color	Natural	Natural, Blue
Insulation Height	14.1 mm	14.1 mm
Insulation Height	0.555 in	0.555 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	19.4 mm	19.4 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	6	6
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	5 mm	5 mm
Pitch - Mating	0.197 "	0.197 "
Row Spacing - Mating [x]	0.244 "	0.244 "
Row Spacing - Mating [x]	6.2 mm	6.2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Kinked Pin, Solder	Kinked Pin, Solder
Voltage Rating	300 VAC	300 VAC

CONN HEADER VERT 6POS 5MM

Part	Current Rating (Amps)	Fastening Type	Connector Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Style	Features	Insulation Material	Pitch - Mating	Pitch - Mating	Insulation Color	Applications	Number of Positions	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Voltage Rating	Termination	Material Flammability Rating	Mounting Type	Contact Shape	Contact Finish - Post	Shrouding	Mated Stacking Heights	Insulation Height	Insulation Height	Contact Type
TE Connectivity AMP Connectors 1376387-1	Varies by Wire Gauge	Locking Ramp	Header	All	-40 °C	105 ░C	Board to Cable/Wire	Board Guide	Polyamide (PA66), Nylon 6/6, Glass Filled	5 mm	0.197 "	Natural	General Purpose	6	3.5 mm	0.138 in	2	Copper Alloy	0.244 "	6.2 mm	300 VAC	Kinked Pin, Solder	UL94 V-0	Through Hole	Rectangular	Tin	Shrouded - 4 Wall	19.4 mm	14.1 mm	0.555 in	Tab
TE Connectivity AMP Connectors 2-1376387-3	Varies by Wire Gauge	Locking Ramp	Header	All	-40 °C	105 ░C	Board to Cable/Wire	Board Guide	Polyamide (PA66), Nylon 6/6, Glass Filled	5 mm	0.197 "	Blue	General Purpose	6	3.5 mm	0.138 in	2	Copper Alloy	0.244 "	6.2 mm	300 VAC	Kinked Pin, Solder	UL94 V-0	Through Hole	Rectangular	Tin	Shrouded - 4 Wall	19.4 mm	14.1 mm	0.555 in	Tab
