R316261000

Active

Radiall USA, Inc.

BNC HT-MHV / STRAIGHT SQUARE FLA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

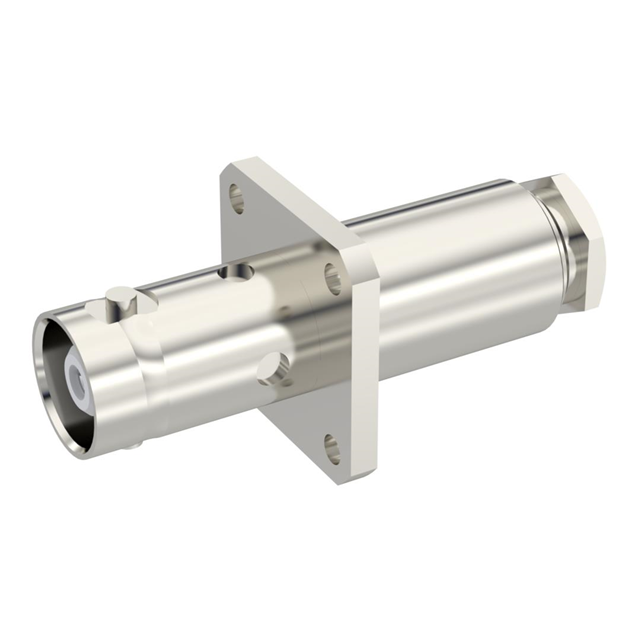

BNC HT-MHV / STRAIGHT SQUARE FLA

Technical Specifications

Parameters and characteristics for this part

Specification	R316261000

Body Finish	Nickel
Body Material	Brass
Cable Group	62, RG-59
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp

Part	Center Contact Material	Connector Style	Cable Group	Mounting Feature	Housing Color	Impedance	Connector Type	Fastening Type	Body Finish	Body Material	Dielectric Material	Number of Ports	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Center Contact Plating	Contact Termination	Mating Cycles
Radiall USA, Inc. R316261000	Beryllium Copper Brass	BNC	62 RG-59	Flange	Silver	50 Ohms	Female Socket Jack	Bayonet Lock	Nickel	Brass	Polytetrafluoroethylene (PTFE)	1	2 GHz	155 °C	-55 °C	Clamp	Silver	Solder	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 50.01

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder
