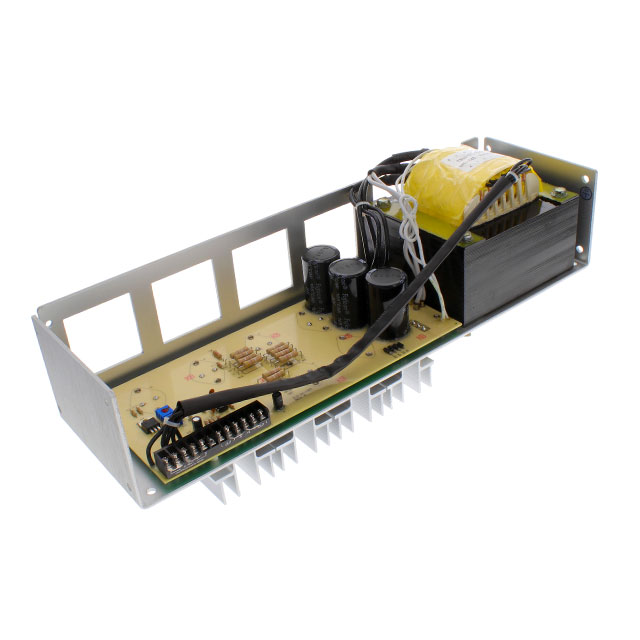

SLS-24-120T

SolaHD

AC/DC CONVERTER 24V 288W

Search across all available documentation for this part.

SolaHD

AC/DC CONVERTER 24V 288W

Technical Specifications

Parameters and characteristics for this part

Specification	SLS-24-120T

Applications	ITE (Commercial)
Approval Agency	CSA, cURus
Current - Output 1	12 A
Features	Remote Sense, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	288 W
Size / Dimension	428 mm, 125 mm, 87.9 mm
Size / Dimension [x]	16.85 in
Size / Dimension [y]	4.92 in
Size / Dimension [z]	3.46 "
Type	Open Frame
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	24 V

Part	Current - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Number of Outputs	Power (Watts)	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension	Size / Dimension [y]	Features	Applications	Mounting Type	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]
SolaHD SLS-24-120T	12 A	240 VAC	100 VAC	CSA cURus	1	288 W	24 V	16.85 in	3.46 "	87.9 mm 125 mm 428 mm	4.92 in	Adjustable Output Remote Sense	ITE (Commercial)	Chassis Mount	Open Frame
SolaHD SLS-24-072T	7.2 A	240 VAC	100 VAC	CSA cURus	1	173 W	24 V	13.98 "	2.75 in		4.87 in	Adjustable Output Remote Sense	ITE (Commercial)	Chassis Mount	Open Frame	69.9 mm	355.1 mm	123.7 mm
SolaHD SLS-24-036T	3.6 A	240 VAC	100 VAC	CSA cURus	1	86 W	24 V	7 "	2.75 in		4.87 in	Adjustable Output Remote Sense	ITE (Commercial)	Chassis Mount	Open Frame	69.9 mm	177.8 mm	123.7 mm
SolaHD SLS-24-024T	2.4 A	240 VAC	100 VAC	CSA cURus	1	58 W	24 V	5.62 in	1.28 in		4.87 in	Adjustable Output Remote Sense	ITE (Commercial)	Chassis Mount	Open Frame		142.7 mm		32.5 mm	123.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 24V 100 ~ 240 VAC Input
