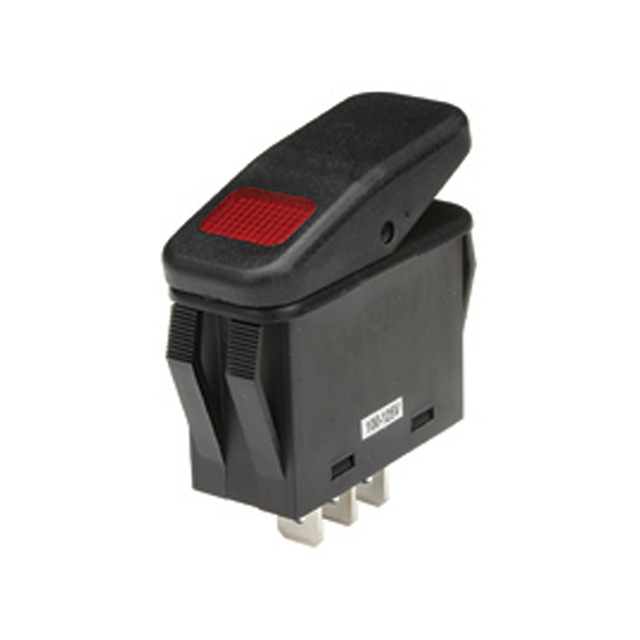

54-215W

Active

NTE Electronics, Inc

SWITCH ROCKER SPST 20A 125V

Search across all available documentation for this part.

Active

NTE Electronics, Inc

SWITCH ROCKER SPST 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	54-215W

Actuator Marking	No Marking
Actuator Type	Convex (Reverse V) - Illuminated
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	20 A
Illumination Type, Color	Red, Neon
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Switch Function	On-Off
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Actuator Marking	Actuator Type	Illumination Type, Color	Current Rating (Amps)	Circuit	Termination Style	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Ingress Protection	Mounting Type	Switch Function
NTE Electronics, Inc 54-215W	No Marking	Convex (Reverse V) - Illuminated	Neon Red	20 A	SPST	Solder Lug	Black	85 °C	-20 C	125 V	IP65 - Dust Tight Water Resistant	Panel Mount Snap-In	On-Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch SPST 20A (AC) 125 V Panel Mount, Snap-In
