Technical Specifications
Parameters and characteristics for this part
| Specification | SD4933MR |
|---|---|
| Configuration | N-Channel |
| Current - Test | 250 mA |
| Current Rating (Amps) | 40 A |
| Frequency | 30 MHz |
| Gain | 24 dB |
| Package / Case | M177 |
| Power - Output | 300 W |
| Supplier Device Package | M177 |
| Technology | MOSFET (Metal Oxide) |
| Voltage - Rated | 200 V |
| Voltage - Test | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 162.40 | |
| 10 | $ 137.78 | |||
| 25 | $ 131.63 | |||
Description
General part information
SD4933MR Series

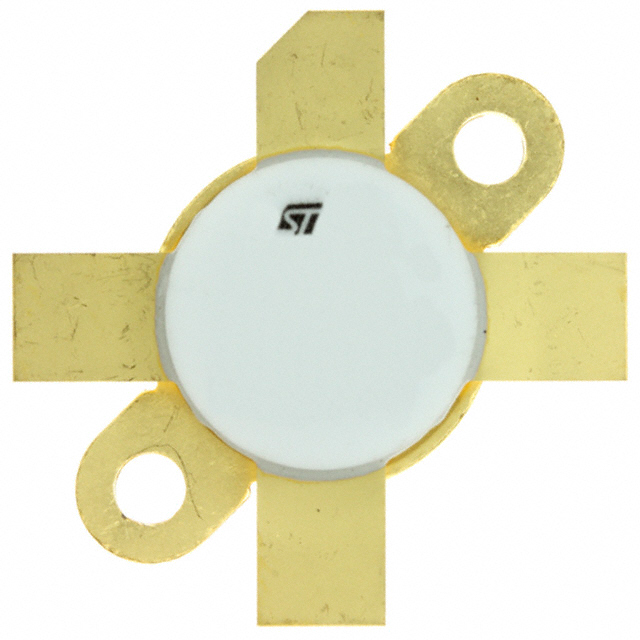

The SD4933MR is an N-channel MOS field-effect RF power transistor. It is intended for use in 50 V ISM applications up to 100 MHz.
The SD4933MR benefits from the latest generation of environmentally designed packaging, ruggedized against cyclic high moisture operating and severe storage conditions.
