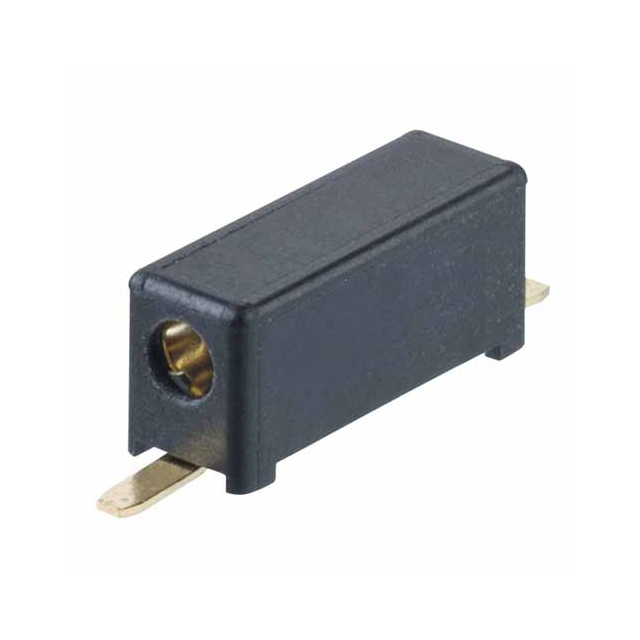

M3497-98R

Active

Harwin Inc.

SMT HORIZONTAL TEST RECEPTACLE FOR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

SMT HORIZONTAL TEST RECEPTACLE FOR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Gender	Contact Material	Type	Body Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color	Termination	Plug/Mating Plug Diameter	Insulation
Harwin Inc. M3497-98	Female	Phosphorus Bronze	Tip Jack	Nylon Polyamide (PA)	Gold	-40 °C	105 ░C	Surface Mount Horizontal	Black	Solder	Standard Tip	Fully Insulated
Harwin Inc. M3497-98R	Female	Phosphorus Bronze	Tip Jack	Nylon Polyamide (PA)	Gold	-40 °C	105 ░C	Surface Mount Horizontal	Black	Solder	Standard Tip	Fully Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 2.19
Newark	Each (Supplied on Full Reel)	5000	$ 2.39
		10000	$ 2.14
